1) The cycle life is about 2000 times ,long circle life
2) Environment friendly the cell passed Rohs
3) High energy for 100% truth capacity
4) Application widely,such as solar product,electronic machine and so on.
5)The battery with black plasical case
|
No.
|
Item
|
General Parameter
|
Remark
|
|
1 |
Rated Capacity
|
20.0Ah |
Standard discharge(0.2 C5)after standard charge(0.2 C5)
|
|
2 |
Minimal Rated Capacity
|
19.5Ah |
|
|
3 |
Nominal Voltage
|
12.8V |
|
|
4 |
Cycle Life
|
Higher than 60% of the Initial Capacity of the Cells |
◆Charge: CC@0.2C to 14.6V, then CV till current to 0.05C ◆Rest: 30min. ◆Discharge: 0.2C to 10.0V ◆Temperature:20±5℃ ◆Carry out 2000cycles
|
|
5 |
Discharge cut-off voltage
|
9.2V |
|
|
6 |
Charging cut-off voltage
|
14.8V |
|
|
7 |
Cell and assembly method
|
IFR26650-3.3AH |
4S6P |
|
8 |
Housing material
|
PVC |
|
|
Weight
|
Approx/: 2.20Kg |
|
|
Max. Dimension
|
thickness/:30mm |
|
|
Width/ 159mm |
||
|
Length/ 272mm |
one set pack with thick bubble pack
1 set for 1 inner box and 10 box in one carton
7-10 Days for normal standard prouction after the buyer confirm the pI
25-35 Days for OEM order

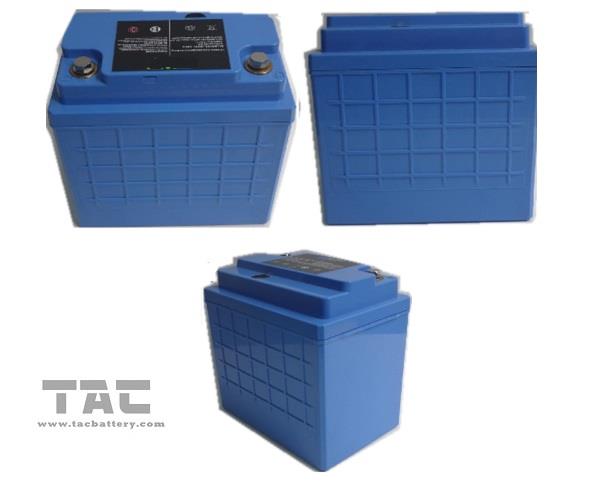

Battery Pack Picture
