No.
|
Item
|
General Parameter
|
Remark
|
|
| 1 |
Rated Capacity
|
Typical
|
800mAh |
Standard discharge(0.2C5A) after Standard charge
|
|
Minimum
|
750mAh | |||
| 2 |
Nominal Voltage
|
11.1V |
Mean Operation Voltage
|
|
| 3 |
Voltage at end of Discharge
|
9V |
Discharge Cut-off Voltage
|
|
| 4 |
Charging Voltage
|
12.6V | ||
| 5 |
Single cell Internal Impedance
|
≤ 80 mW |
Internal resistance measured at AC 1KHZ after 50% charge
The measure must uses the new batteries that within one week after shipment and cycles less than 5 times ( |
|
| 6 |
Weight
|
App 50g | ||
| 7 |
Standard charge
|
Constant Current 0.2C5A Constant Voltage 12.6V 0.02C5A cut-off |
||
| 8 |
Standard discharge
|
Constant current 0.2C5A end voltage 9.0V |
||
| 9 |
Fast charge
|
Constant Current 1C5A Constant Voltage 12.6V 0.02 C5A cut-off |
||

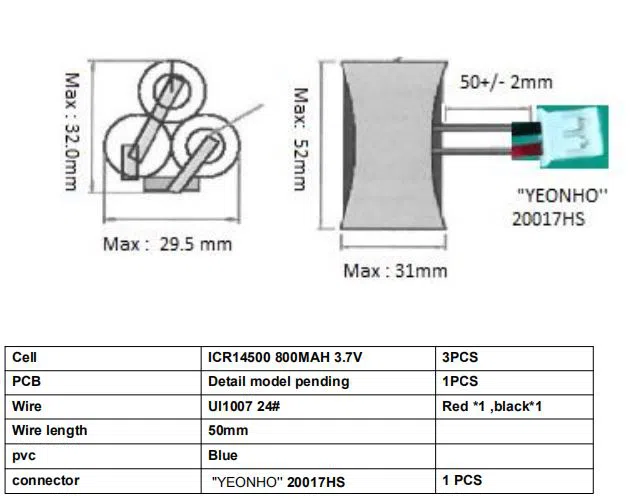

Battery Drawing
