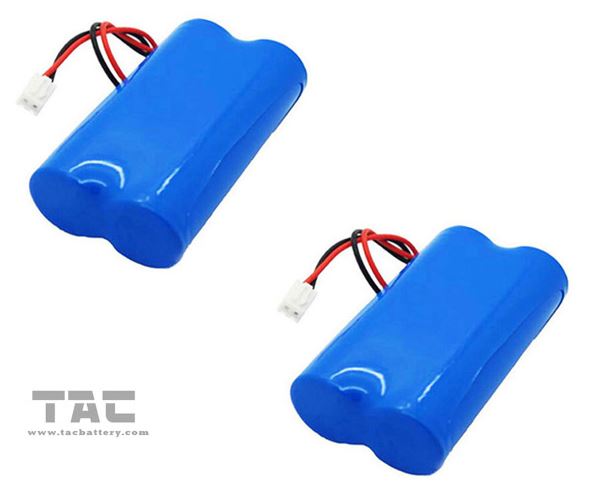

Feature for ICR18650 Lithium Ion Cylindrical Battery 7.4V 2600mah For Outdoor Lighting
1. The rated capacity:2600mAh,The nominal voltage:7.4V.
2. The size for th battery pack:Max 20.5mm*69mm*38.5mm
3. Ths single cell for the pack:energy type ICR18650 2600mAh,2S1P.
4. Have long cycle life.
5. The application for outdorr lighting lithium battery pack,back up battery for outdoor lighting.
Specification for ICR18650 Lithium Ion Cylindrical Battery 7.4V 2600mah For Outdoor Lighting
| No. | Item | General Parameter | Remark |
| 1 | Rated Capacity | 2600mAh | Standard discharge(0.2 C5)after standard charge(0.2 C5) |
| 2 |
Minimal Rated Capacity |
2550mAh | |
| 3 | Nominal Voltage | 7.4V | |
| 4 | Life Exception | Higher than 60% of the Initial Capacity of the Cells |
◆Charge: CC@0.2C to 6V, then CV till current to 0.05C ◆Rest: 30min. ◆Discharge: 0.2C to 5.0V ◆Temperature:20±5℃ ◆Carry out 500cycles |
| 5 | Discharge cut-off voltage | ≥6V | 5.0V( recommended) |
| 6 | Charging cut-off voltage | ≤8.4V | 7.3V (recommended) |
| 7 | Cell and assembly method | ICR18650EC-2600mAh | 2S1P |
| 8 | Housing material | PVC |
