The standard capacity is 10Ah,and the minimal capacity is 9.8Ah.
The standard voltage is 34.8V , 100% Full charge voltage is 43.8v

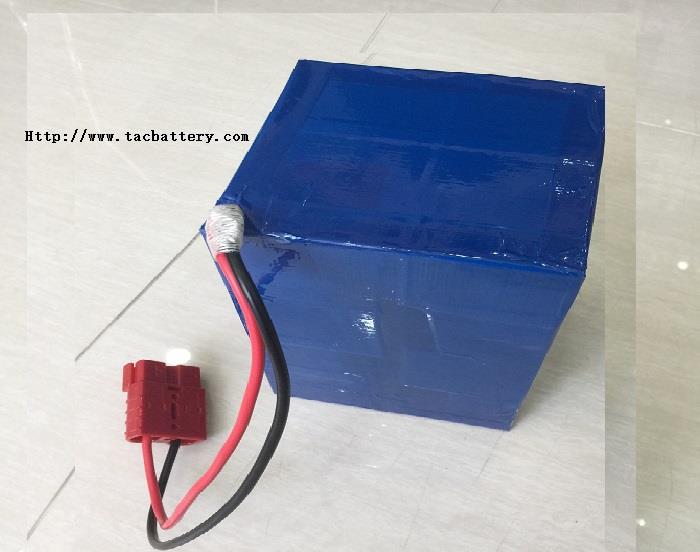

Outside with the plastic shell,and the battery pack protect by expoxy resin board
Lifepo4 battery pack used for solar energy storage system
Deep Circle : Long life 1200times. the battery keep work 3-5 years
|
Item |
General Parameter |
Remark |
|
Rated Capacity |
10.0Ah |
Standard discharge(0.2 C5)after standard charge(0.2 C5) |
|
Minimal Rated |
9.8Ah |
|
|
Nominal Voltage |
34.8V |
|
|
Cycle Life |
Higher than 60% of the Initial Capacity of the Cells |
◆Charge: CC@0.2C to 29.2V, then CV till current to 0.05C ◆Rest: 30min. |
|
Discharge cut-off voltage |
36.0V |
20.0V( recommended) |
|
Charging cut-off voltage |
43.8V |
29.2V (recommended) |
|
Cell and assembly method |
IFR09102165EC-10AH |
12S1P |
|
Housing material |
Blue PVC |
|
Standard charge |
0.2C constant current(CC) charge to 29.2V,then constant voltage (CV)29.2V charge till charge current decline to ≤0.05C |
Charge time : Approx 7h |
|
Standard discharge |
Constant current 0.2C |
|
|
Maximum Charge Current |
5A |
|
|
Continuous Discharge Current |
10A |
|
|
Operation Temperature Range |
Charge: 5~45℃ |
60±25%R.H. |
|
Discharge: -10~60℃ |
||
|
Storage Temperature Range |
Less than 1 year : 0~25℃ |
60±25%R.H. |
|
Less than 3 months:-5~35℃ |
||
|
Weight |
Approx: 5.5Kg |
|
|

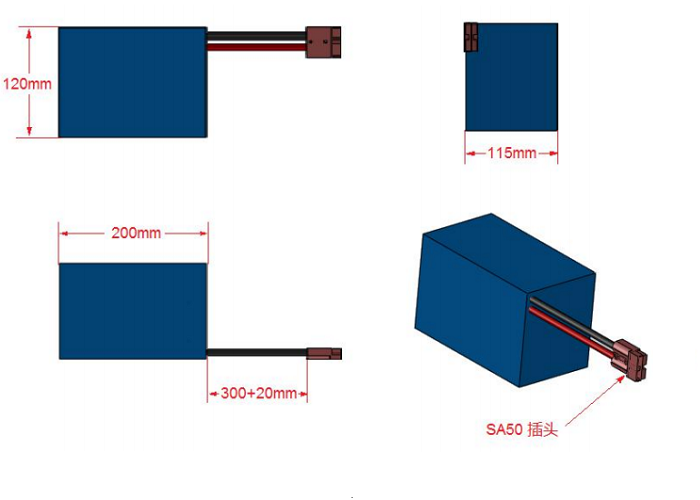

Max.Dimension |
High:115±2 mm |
|
|
Width: 120±2mm |
||
|
Length: 200±2mm |

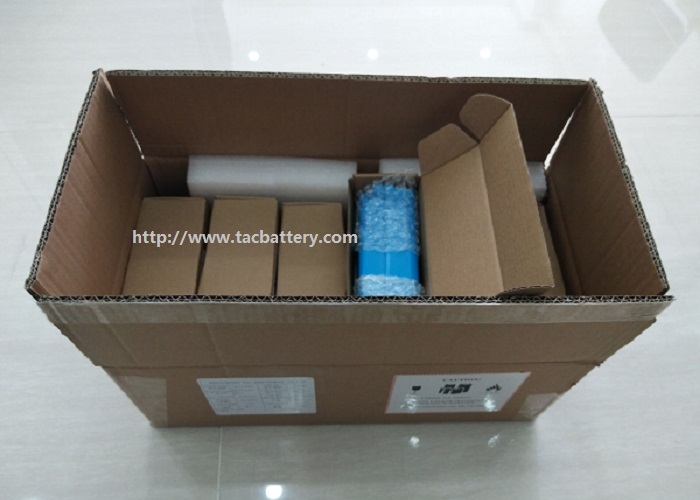

we protect the battery pack by extra - sponge, and then put into seven level extra-hard paper carton
1 whole set / each carton
1) Standard module , 15-20 Days when you confirm the order and arrange the payment
2)OEM module :25-35 days when we confirm all detail information
