LiFePO4 Battery Pack 26650 12v 18ah For Solar Street Lighting singlce cell Specification:
| No. | Items | Specifications |
Remark |
|
| 1 |
Nominal Capacity |
3000mAh |
0.2C Standard discharge |
|
| 2 |
Minimum Capacity |
2940mAh | ||
| 3 |
Nominal Voltage |
3.2V |
Mean Operation Voltage |
|
| 4 |
Delivery voltage |
3.2~3.3V |
Within 10 days from Factory |
|
| 5 |
Charge Voltage |
3.65V±0.03V |
By standard charge method |
|
| 7 |
Charge current |
0.2C | 600mA |
Standard charge, charge time about 6h(Ref) |
| 0.5C | 1500mA |
Rapid Charge, charge time about: 3h(Ref) |
||
| 9 |
Cell Internal Impedance |
≤40mΩ |
Internal resistance measured at AC 1KHZ after 50% charge |
|
|
No
|
Item
|
Parameter
|
|
|
1
|
Nominal Voltage
|
12.8V
|
|
|
2
|
Rated Capacity
|
18AH
|
|
|
3
|
Max.constant discharge current
|
13.5A
|
|
|
4
|
Charging Mode
|
CC/CV
|
|
|
5
|
Charging Current
|
3-6A
|
|
|
6
|
Working Voltage Range
|
10-14.6V
|
|
|
7
|
Over charging Protection Voltage
|
15.6V
|
|
|
8
|
Over discharging Protection Voltage
|
10V
|
|
|
9
|
Communication
|
Nope
|
|
|
10
|
Others
|
Nope
|
|
|
11
|
Life Cycles
|
1500 times
capacity≥nominal capacity*80% |
|
|
12
|
Working Temp.(CC/CV)
|
Working
|
0℃~65℃
|
|
13
|
Storage
|
-20℃~45℃
|
|
|
14
|
Dimension
|
T
|
33mm
|
|
W
|
159mm
|
||
|
H
|
272mm
|
||
|
15
|
Weight
|
2.1kg
|
|
|
16
|
Cables/
Connectors |
Cables OEM
General Water-proof Connectors (As follows) |
|
Small medical equipment and portable equipment
Remote control cars, boat, aircraft, toys
Large-scale electric vehicles: electric bus, electric car, E-Tour Car
Light electric car: e-bike, e-scooter,e-motorcycle, electric golf cart, e-wheelchair
E-tool: electric drill, electric saw, lawn mower and so on
Solar and wind power generation energy storage devices, Telecom base Station
The battery were wrapped by double level sponge bag, one set for one inner box, and 8-10 box for one standard paper carton

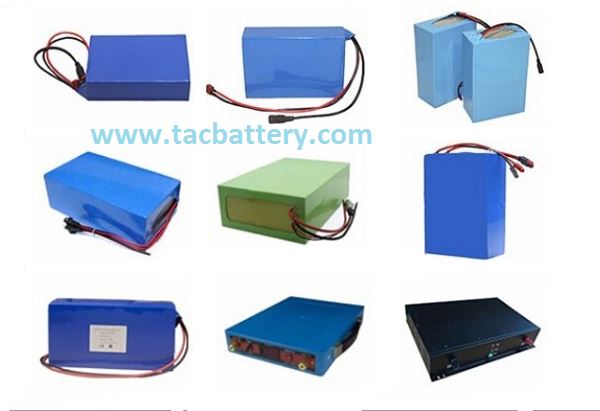

we can provide mutipe size for lifepo4 battery pack to meet your design require

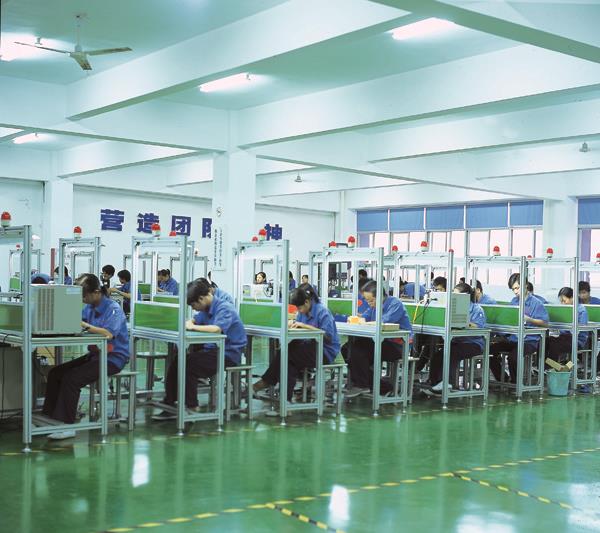

Our Factory Production Line
