| Item | Specification |
| Battery Type | LiFePO4 battery |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 6AH |
| Battery Type | Cylindrical with tag |
| Discharge Cut-off | 2.5V |
| Charge Cut-off | 3.65V |
| Charge Current | 0.2C |
| Continuous Discharge | 0.5C |
| Peak Discharge | 6A |
| Impendance: | ≤30mΩ |
| Charge Temperature | 0℃ - 45℃ |
| Discharge Temperature | -20℃ - 60℃ |
| Charge Method | CC/CV |
| Life Cycle | 2000-3000 |
| Application | Solar/UPS |
| Dimension | D32mm H70mm |
| Weight | 140g |
| Warranty | 12 months |

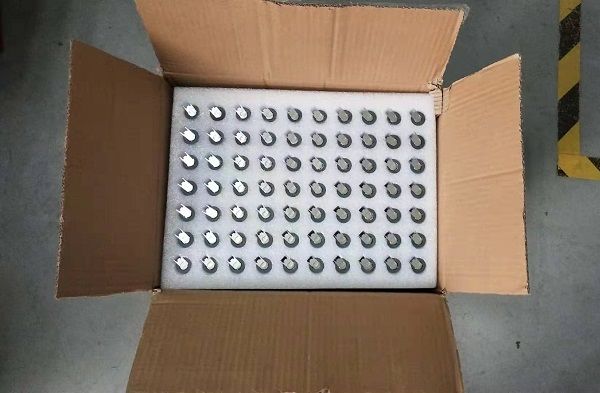

| Package | 100pcs/box |

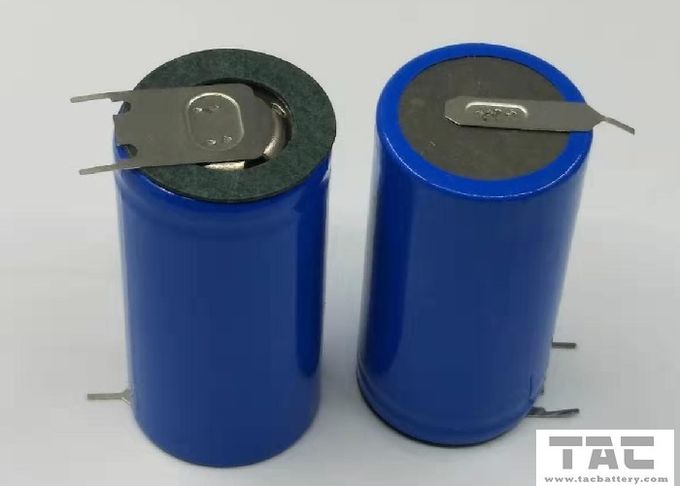

Specially design : The 2-pin terminal is on the (-) side and The 1-pin terminal on the (+) side of the battery.
support various original connector , customized connector is workable
Single cell passed UL certfication and Reach
more accurate size
We can support low moq for the customized order

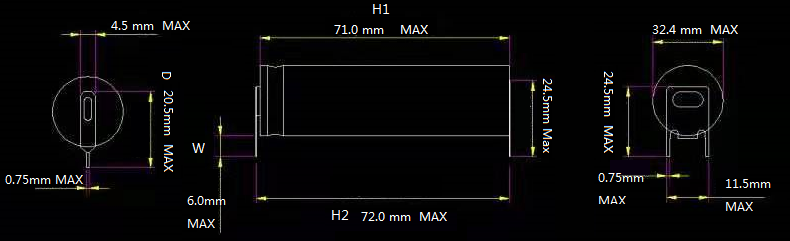

| NO | Items | Units: mm |
| 1 | diameter | 32.4mm (Max) |
| 2 | Height | 71.0 mm (Max) |
| 3 | Height | 72.0 mm (Max) |
| 4 | Width / W | 6.0 mm( Max) |
| 5 | 1-pin for the (+) terminal | 20*4.0 mm |
| 6 | 2-pins for the (-) terminal | 24*11 mm |
| 7 | W | 5.5+/-0.5mm |
