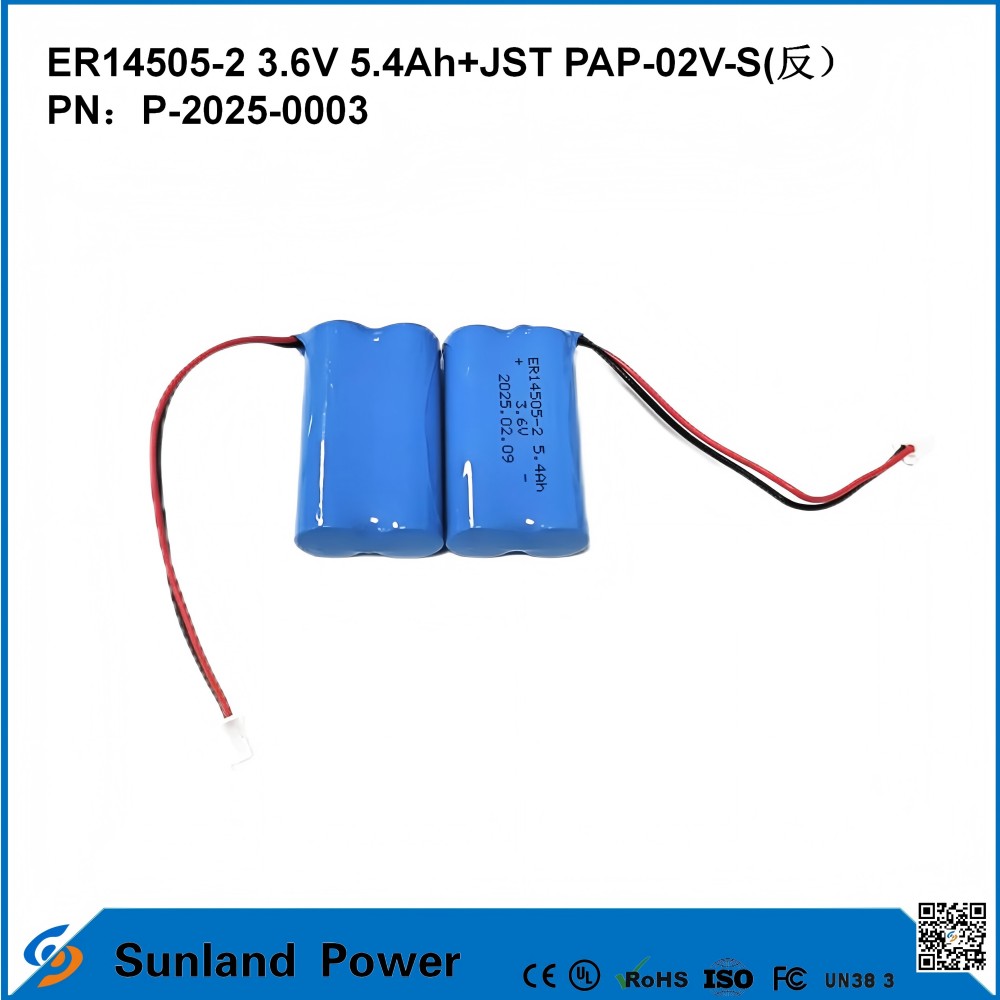

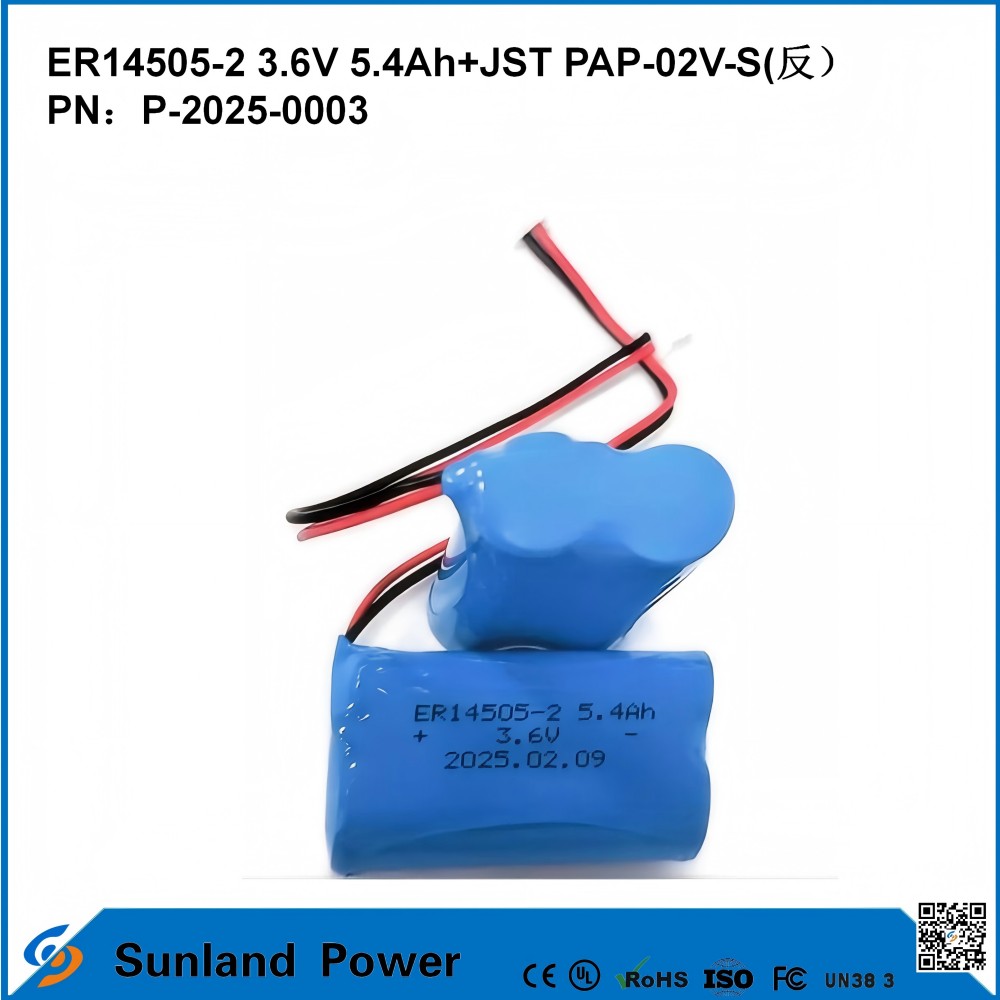

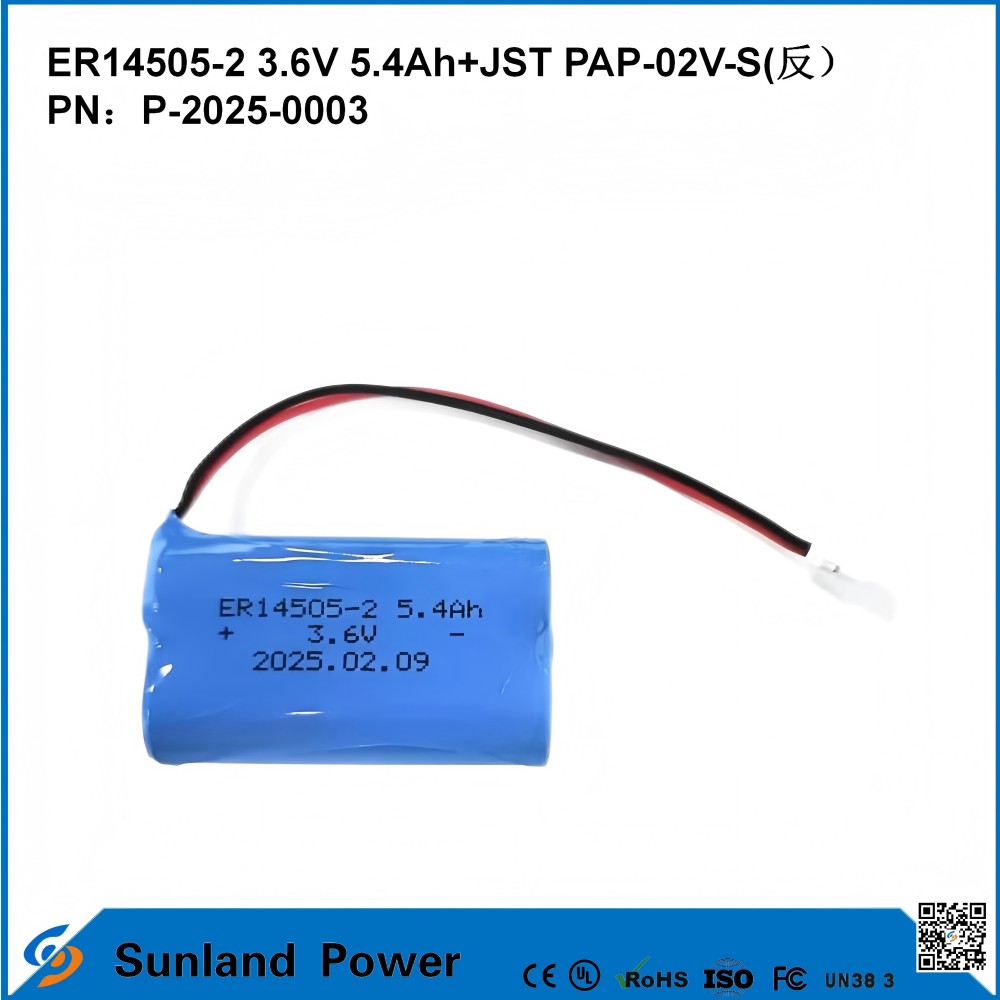

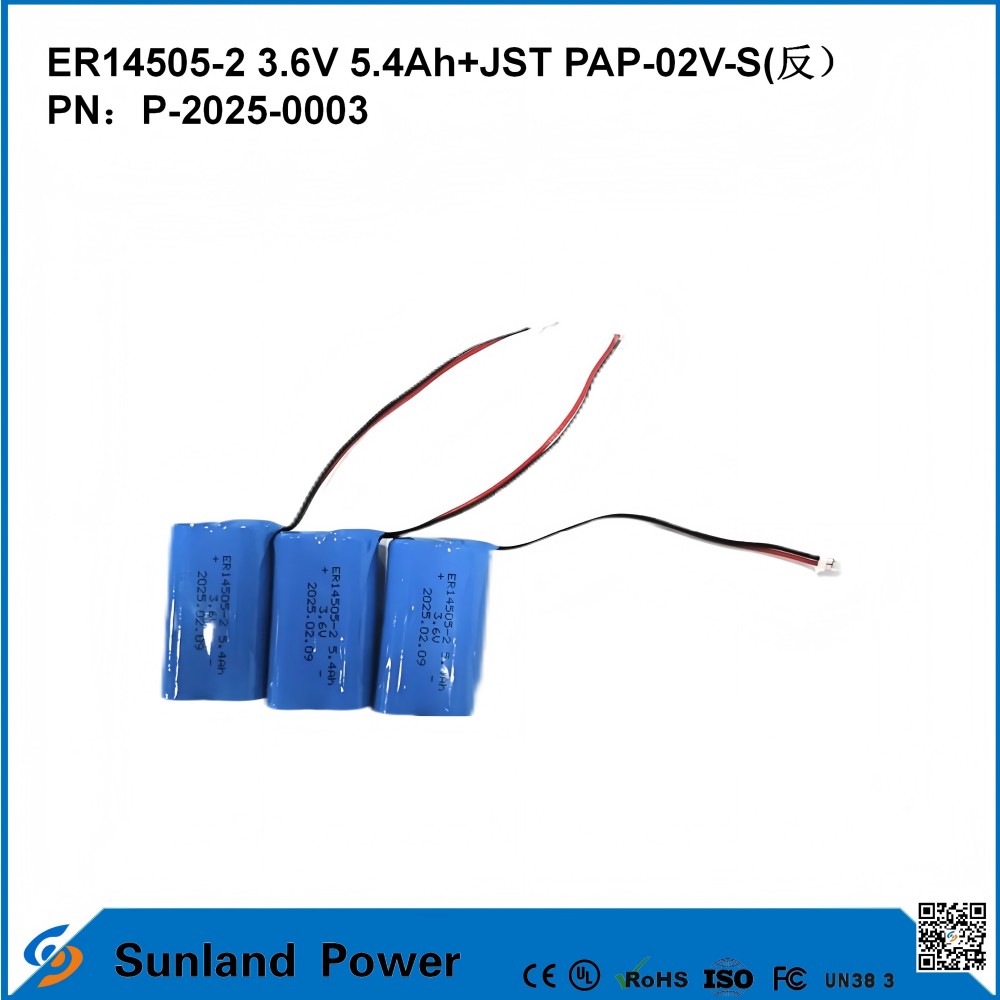

3.6V 5.4AH ER14505-2 Primary Battery
ELECTRICAL CHARACTERISTICS
Nominal Capacity
5.4Ah
(1mA,+25℃ 2V cut off.The capacity restored by the
cell varies according to current drain, temperature and cut-off)
Nominal Voltage:3.6V
Max.continuous current:100mA
Max.Pulse Capability:200mA
Storage(recommended)Max.30℃
Operating Temperature Range
﹣60℃～+85℃
(Operation at temperature different from ambient may lead to
reduced capacity and lower voltage plateau readings)
Weight Approx.40g
KEY FEATURESAPPLICATION
High and stableoperating voltage
Low self discharge rate(less than 1% after 1 year of storage at 25℃)
Long storage life
Stainless steel container(with low magnet)
Widely operating temperature range
Hermetic glass-to-metal sealing
Non-flammable electrolyte
CE,SGS recognized,ISO9001 approved
Utility metering
Memory back-up
Alarms and security devices
Tollgate systems
Military electronics
Automotive electronics
Professional electronics
