No.
|
Item
|
Rated Performance
|
Remark
|
|
|
1
|
Rated Capacity
|
Typical
|
2200mAh
|
Standard discharge(0.2C C5A) after Standard charge
|
|
Minimum
|
2150mAh
|
|||
|
2
|
Nominal Voltage
|
3.7V
|
Mean Operation Voltage During Standard Discharge After Standard Charge
|
|
|
3
|
Voltage at end of
Discharge
|
3.0V
|
Discharge Cut-off Voltage
|
|
|
4
|
Charging Voltage
|
4.2±0.03V
|
|
|
|
5
|
AC (1KHz) Impedance New Cell Max.(mW)
|
≤80mΩ
|
The measure must be uses the new batteries that within one week after shipment and cycles less than 5 times
|
|
|
6
|
Standard charge
|
Constant Current 0.5C5A
Constant Voltage 4.2V
0.01 C5A cut-off
|
Charge time : Approx 4.0h
|
|
|
7
|
Standard discharge
|
Constant current 0.2 C5A
end voltage 3.0V
|
|
|
|
8
|
Fast charge
|
Constant Current 1C5A
Constant Voltage 4.2V
0.01 C5A cut-off
|
Charge time : Approx 2.5h
|
|
|
9
|
Fast discharge
|
Constant current 1 C5A
end voltage 3.0V
|
|
|
|
10
|
Maximum Continuous Charge Current
|
1 C5A
|
|
|
|
11
|
Maximum Continuous Discharge Current
|
1.5 C5A
|
|
|
|
12
|
Operation Temperature Range
|
Charge: 0~45℃
|
60±25%R.H.
Bare Cell
|
|
|
Discharge: -20~60℃
|
||||
|
13
|
Storage Temperature
Range
|
Less than 1 year: -20~25℃
|
60±25%R.H.
at the shipment state
|
|
|
less than 3 months: -20~40℃
|
||||
|
14
|
Weight
|
Approx 39±3 g
|
Bare Cell
|
|
|
15
|
Cell Dimension
|
Diameter:18.3±0.2mm
|
Initial Dimension
|
|
|
Height:64.5±0.5mm |
||||
Electronic instruments
E- toy
electrical scooter
various light lamp
note book
Power tool
solar product
camera
for Led light
Q: Can I get the sample order?
A:Yes, if the buyer would like to pay for the samples fee and shipping fee ,we welcome sample order to test and check quality, Mix sample are acceptable
Q:How did you ship the goods and how long does it take arrive?
A:the lithium battery is dangrous cargo , We usually ship by our forward including of DHL, EMS, Fedex, and TNT, It usually take 3-5 work days to arrive.
Q:How to proceed the order if I have logo to print?
A:Firstly, pls confirm the specification for the battery including of the size accemble and other important performance , and the we will issue the PI, after the buyer pay with the PI , we will send sample to you.
Q:Do you offer guarantee for the products?
A:Yes, we offer one year warranty for the products.

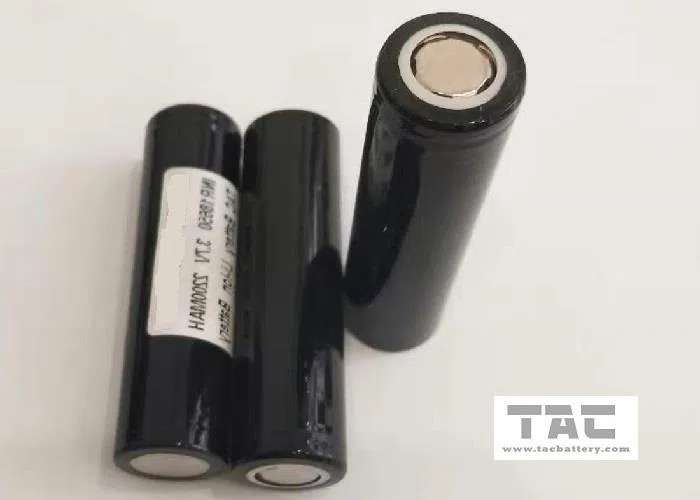

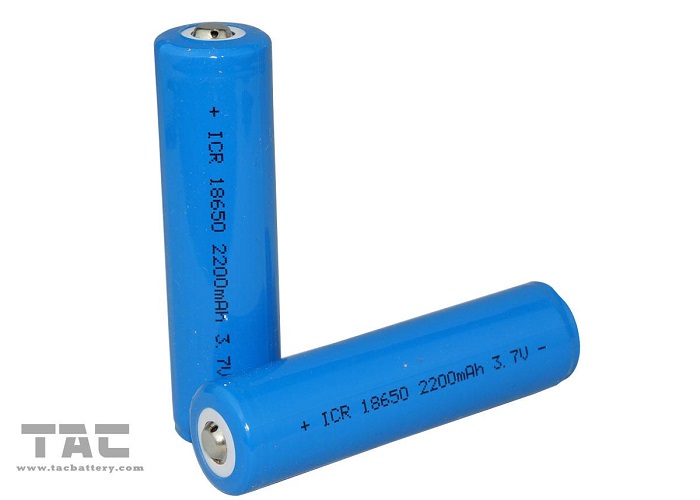

LIR18650 3.7v Lithium Ion Cylindrical Battery 2200mAh with High Energy Density for LED Light

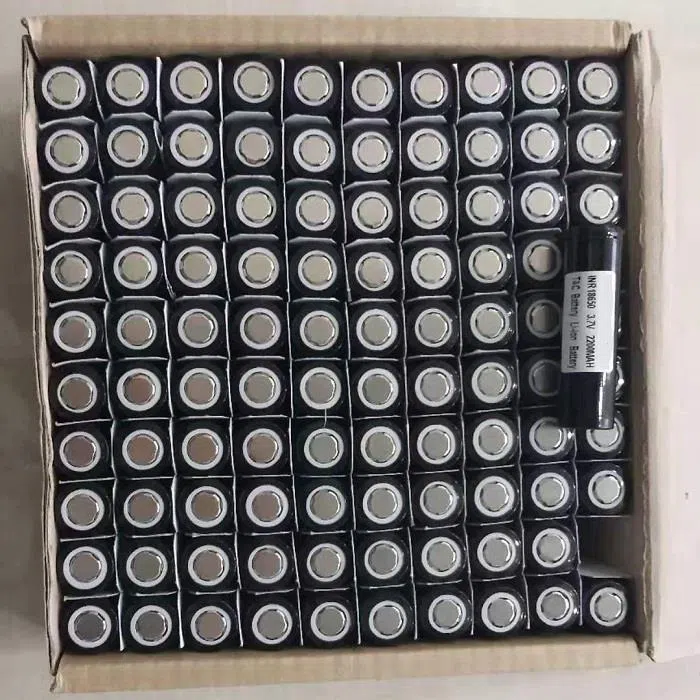

The industry packaging is 100 pcs for one paper box with speically design
We also support the display or OEM package
7-10days after the customer confirmt he Pi and arrange the payment
We ship out the cargos by air and sea with customer's require

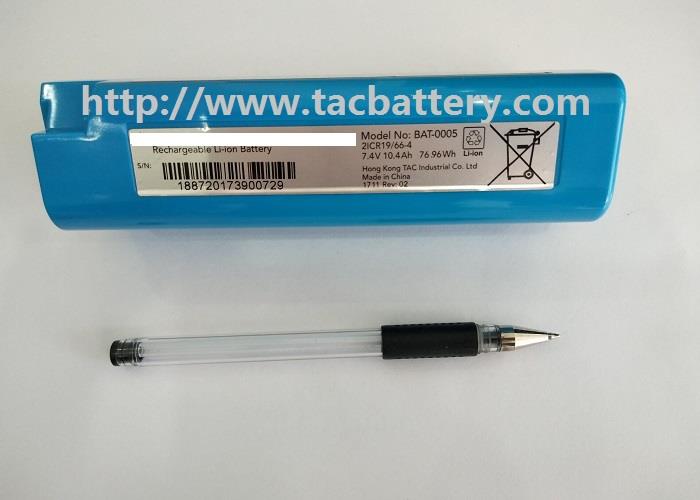

The Picture for battery pack
