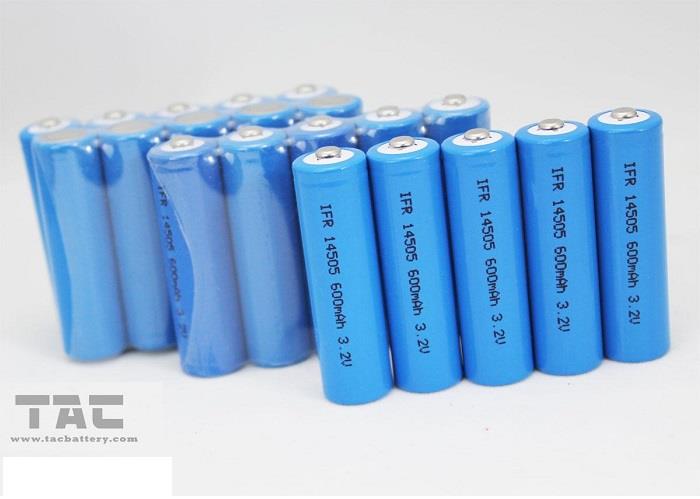

Lithium Ion AA 3.2v Lifepo4 Battery 450mah For Led Lamp And Solar Lamp

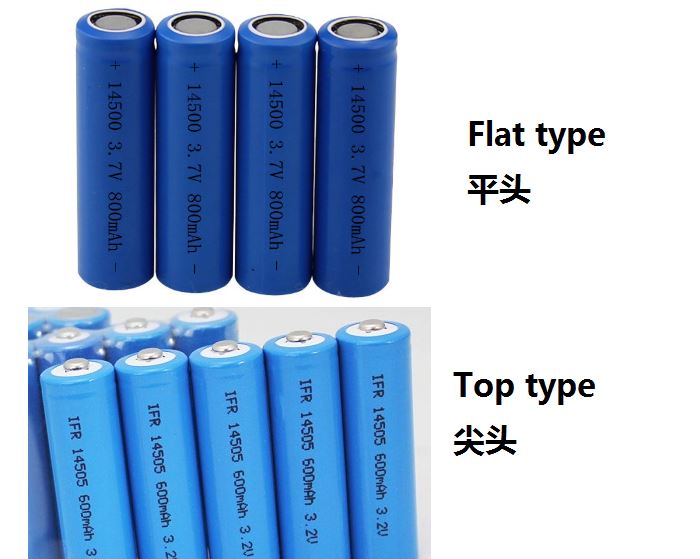

Some company called this model 14505 also, in order to avoid misunderstand , pls take close attention to below information
IFR14500 3.2v flat type
IFR14505 3.2V Top type
The size is High:50.0±0.5mm Diameter: 14.3±0.2 mm
Pls check the max size if your measure with strict require
Quick Detail:
1.14505 as the same 14500
2.Have different capacity:250mAh,300mAh,400mAh,450mAh 500mAh,600mAh,700mAh
3. AA battery can make a pack or use by single ell
4.Application for road studs, LED light, flash light
|
No. |
Items |
Specifications |
Remark |
|
|
1 |
Nominal Capacity |
600mAh |
0.2C Standard discharge |
|
|
2 |
Minimum Capacity |
550mAh |
||
|
3 |
Nominal Voltage |
3.2V |
Mean Operation Voltage |
|
|
4 |
Delivery voltage |
3.25~3.34V |
Within 10 days from Factory |
|
|
5 |
Charge Voltage |
3.65V±0.03V |
By standard charge method |
|
|
6 |
Standard charging method |
0.5C constant current,3.65V constant voltage charge to 3.65V,continue charging till current decline to ≤0.01C |
|
|
|
7 |
Charge current |
0.5C |
250mA |
Standard charge, charge time about 3h(Ref) |
|
1.0C |
500mA |
Rapid Charge, charge time about: ::2h(Ref) |
||
|
8 |
Standard discharging method |
0.2C constant current discharge to 2.5V, |
|
|
|
9 |
Cell Internal Impedance
|
≤80mΩ |
Internal resistance measured at AC 1KHZ after 50% charge |
|
|
10 |
Maximum charge current |
1C |
For continuous charging mod |
|
|
11 |
Maximum discharge current |
1C |
For continuous discharge mod(Discharge capacity for more than 80% of the nominal capacity) |
|
Lithium Ion IFR14500 AA 3.2v Lifepo4 Battery 450-500mah For Led Lamp
|
NO |
Items |
Units: mm |
|
1 |
Diameter(D) |
14.2±0.3 |
|
2 |
Height(H) |
50.2±0.02 |
All packages must be labeled with 9 categories of dangerous goods and labeled with "Full Freight Transportation Only" operation label.
