Rechargeable 3.2V LiFePO4 Battery Portable For Medical Device IFR14505 AA
Some company called this model 14505 also, in order to avoid misunderstand , pls take close attention to below information
- IFR14500 3.2v flat type
- IFR14505 3.2V Top type
- The size is High:50.0±0.5mm Diameter: 14.3±0.2 mm
- Pls check the max size if your measure with strict require .
Features for Rechargeable 3.2V LiFePO4 Battery Portable For Medical Device IFR14505 AA
1. Model name:IFR14500/AA 500mAh 1.6Wh
2. There are IFR14500/AA 200mAh/250mAh/300mAh/400mAh/500mAh/600mAh available
3. The application are widely,for street light,solar product and so on.
4. Deep cycle life,it is about 2000 times
Application:
-
Portable high power devices
-
Stationary battery backup systems
-
Grid stabilization energy storage systems
-
Commercial truck and bus electric vehicles (HEVs)
BatterySpecification List:
1.Minimum Capacity: 500mAh (0.5C discharge at 20°C)
2. Nominal Voltage: 3.2V
3. Discharge End Voltage: 2.0V
4. Standard Charging Current: 60mA
5. Charging Voltage: 3.65±0.03V
6. Standard Charging Time: 6.0hours
7. Max. Continuous Discharging Current: 600mA
8. Internal Resistance: less than 80mΩ
9. Weight: less than 18g
Packaging for Bulk
Regarding of the packaging information for the Rechargeable 3.2V LiFePO4 Battery Portable For Medical Device IFR14505 AA Bulk cell,the battery was separated by paper clapboard , 50 pcs in one box , 8 box in one carton.
Pictures For Rechargeable 3.2V LiFePO4 Battery Portable For Medical Device IFR14505 AA Bare cell

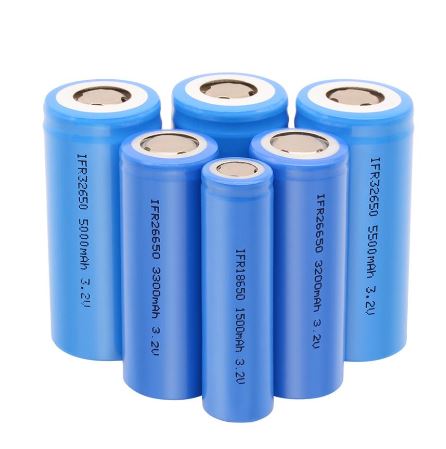

The similar size for LIFEPO4 Battery
| ITEM |
CAPACITY |
VOLTAGE |
| IFR10280 |
80MAH |
3.2V |
| IFR10440 |
250MAH |
3.2V |
| IFR14500 |
750MAH |
3.2V |
| IFR17335 |
800MAH |
3.2V |
| IFR18500 |
1500MAH |
3.2V |
| IFR18650 |
2000MAH |
3.2V |
| IFR26650 |
3300MAH |
3.2V |
| IFR32650 |
5000MAH |
3.2V |
