No. |
Items |
Specifications |
Remark
|
|
|
1 |
Nominal Capacity
|
36Ah |
0.2C Standard discharge
|
|
|
2 |
Minimum Capacity
|
35.5Ah |
||
|
3 |
Nominal Voltage
|
12.8V |
Mean Operation Voltage
|
|
|
4 |
Charge Voltage
|
14.6V±0.03V |
By standard charge method
|
|
|
5 |
Standard charging method
|
0.2C constant current,14.6V constant voltage charge to 14.6V,continue charging till current decline to ≤0.01C |
|
|
|
6 |
Charge current
|
0.2C |
7A |
Standard charge, charge time about 6h(Ref)
|
|
7 |
Standard discharging method
|
0.2C constant current discharge to8.0V, |
|
|
|
9 |
Battery Internal Impedance
|
≤150mΩ |
Internal resistance measured at AC 1KHZ after 50% charge
|
|
|
No |
Items |
Test Method and Condition |
Criteria |
|
1 |
Rated Capacity at 0.2C(Min.)
|
After standard charge, the capacity shall be measured on 0.2C discharge till the voltage discharge to2.0V,
|
≥35.5Ah |
|
Rated Capacity at 0.5C(Min.)
|
After standard charge, the capacity shall be measured on 0.5C discharge till the voltage discharge to 2.0V,
|
≥35mAh |
|
|
Rated Capacity at 1C(Min.)
|
After standard charge, the capacity shall be measured on 1C discharge till the voltage discharge to 2.0V,
|
≥34Ah |
|
|
2 |
Cycle Life
|
Charging and discharging battery as blew conditions 0.2C standard charge to 3.65V end-off 0.2C standard discharge to 2.0V cut-off Continuous charge and discharge for 500cycles ,the capacity will be measure after the1500th cycle
|
≥80% of initial capacity |
|
3 |
Capacity retention
|
The battery to be charge in accordance with standard charge condition at 20~25℃,then storage the battery at an ambient temperature 20~25℃ for 28 days. Measure the capacity after 30 days with 1C at 20~25℃ as retention capacity
|
Retention capacity ≥85% |
|

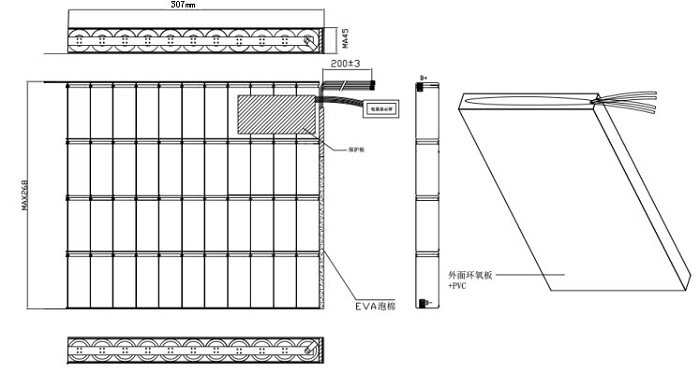

NO |
Items |
Units: mm |
Remark |
|
|
1 |
Thickness |
T |
45 |
Max. |
|
2 |
Width |
W |
307 |
Max |
|
3 |
Height/ |
H |
268 |
Max |
|
4 |
Cable Length display/
|
L1 |
300±3 |
|
|
5 |
Cable Length of charging
|
L2 |
200±3 |
|
|
|
Cable Length of discharging/ |
L3 |
200±3 |
|
|
6 |
Weight |
kg |
4.1kg |
Max |

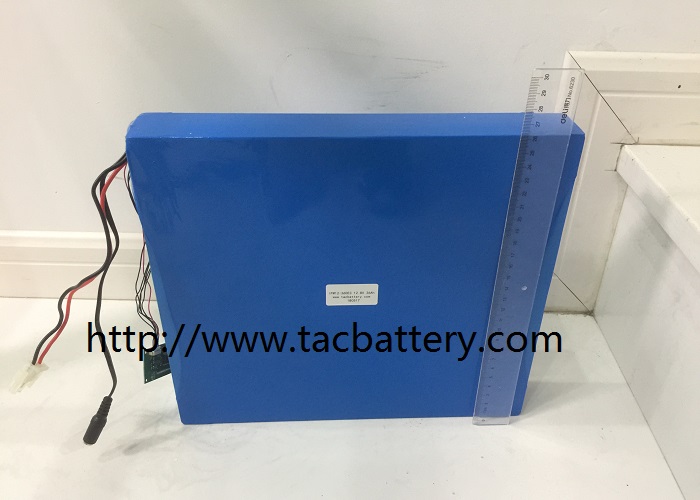

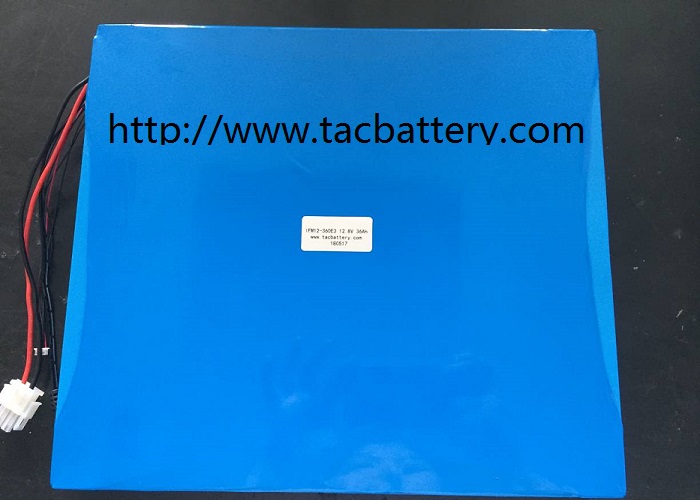

This battery pack is specially design for Mobile Radio, the LIfePO4 batttery pack can used for wide range device by assembled to various size\ voltage and capacity.
15-25days after order confirmed and the buyer arrange the payment
Battery Pack was protected by double thick plastic bag one by one,
3 sets for one strong paper carton
The outer carton stick Standard international transport label with UN38.3 certification
The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
We recommend that batteries be charged about once per half a year to prevent over discharge.
The period of warranty is one year from the date of shipment. TAC guarantees to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.
