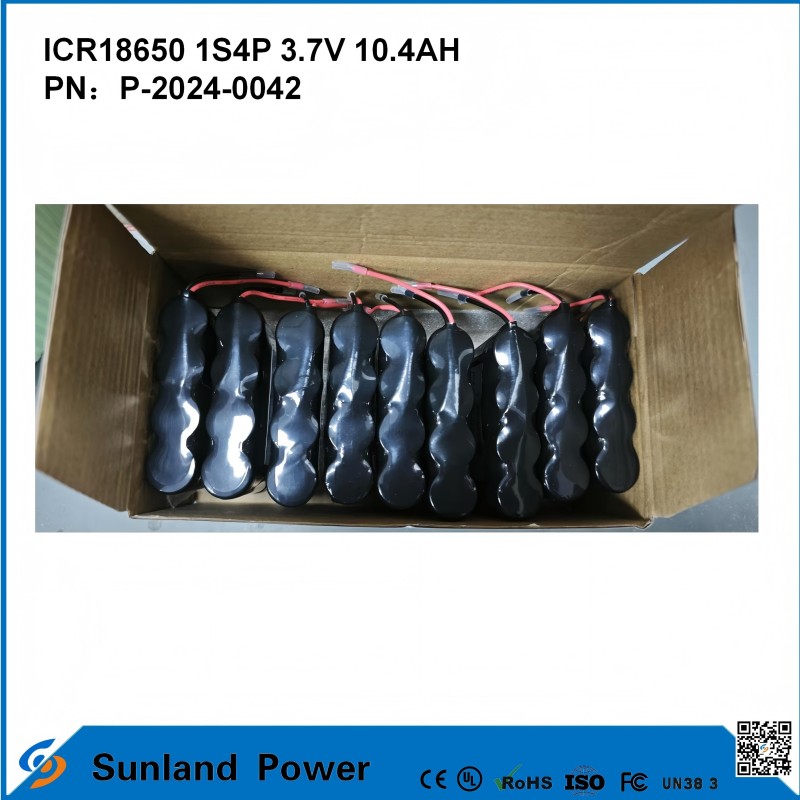

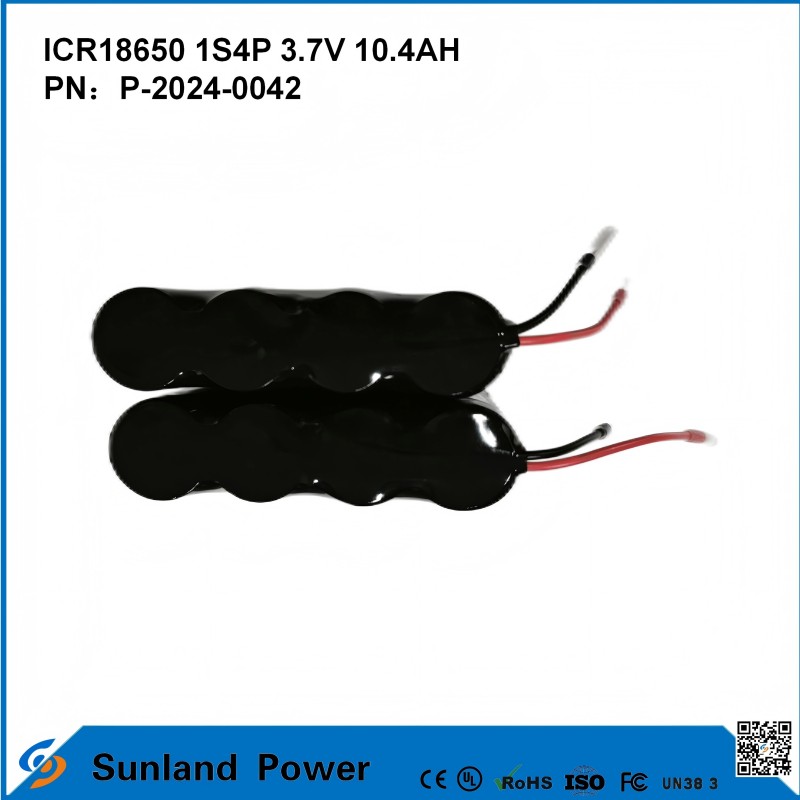

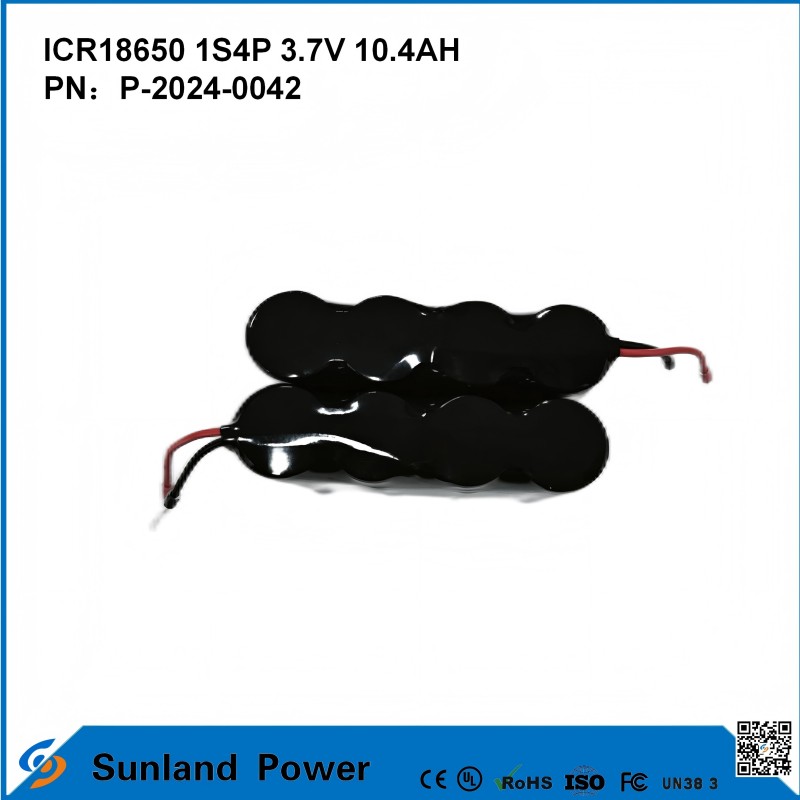

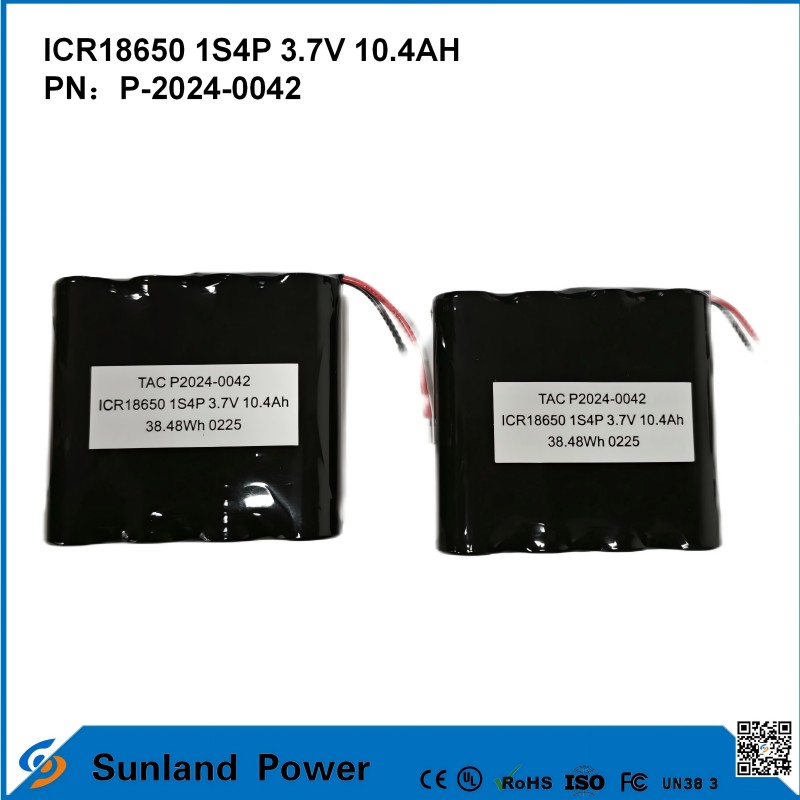

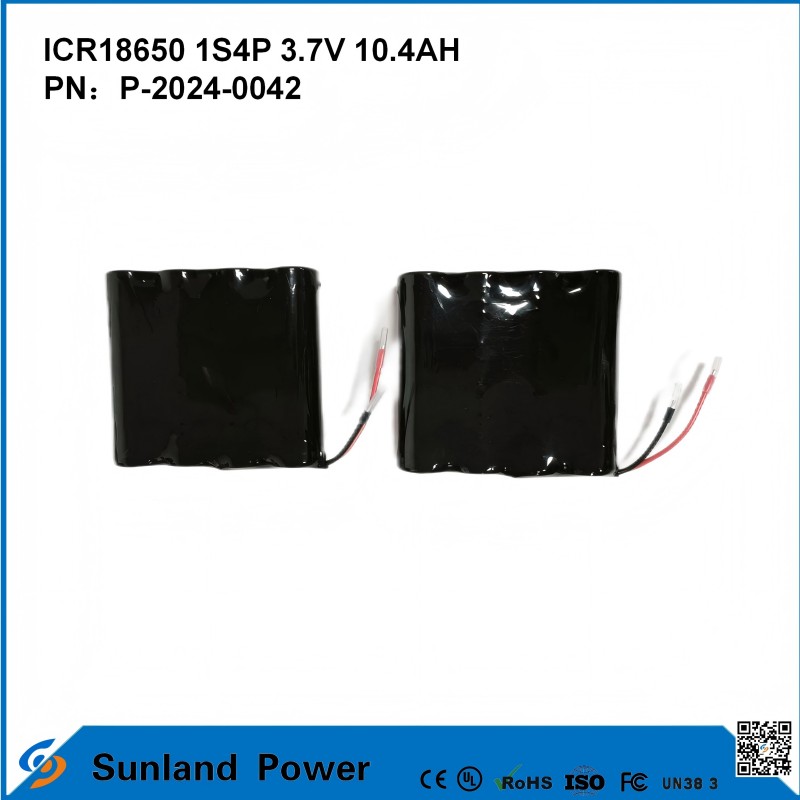

ICR 18650 1S4P Battery For A Versatile, High-Capacity Lithium Battery Solution ，Meeting the long battery life requirements for multiple devices，Provide reliable energy for low-power medical devices.

No.

Items

Specifications

Remark

1

Capacity for assembled cell

≥ 10080mAh

Discharging by 0.2C, Standard discharging method

2

Battery Voltage

3.70-3.90V

Delivery voltage, Within 10 days from Factory

3

Standard charge condition

Charge with 0.2C constant current and 4.2V constant voltage, charge to 4.2V, continue charging till current decline to ≤0.01C
Charge voltage: 4.2V±0.03V
Charge current: 0.2C

-

4

Standard discharging method

0.2C constant current discharge to 3.0V

-

5

Operation Temperature and relative humidity Range

-

-

- 0.2C Charge

0~15℃
60±25% R.H.

Charging at a very low temperature such as below 0℃ will get a lower capacity and reduce cycle life of the battery

- 0.5C Charge

15~45℃
60±25% R.H.

-

- 0.2C Discharge

-20~0℃
60±25% R.H.

-

- 1C Discharge

0~60℃
60±25% R.H.

-

6

Internal Impedance

Assemblage Impedance ≤ 100 mΩ

Measure two sides of the drawing line after assembling.
