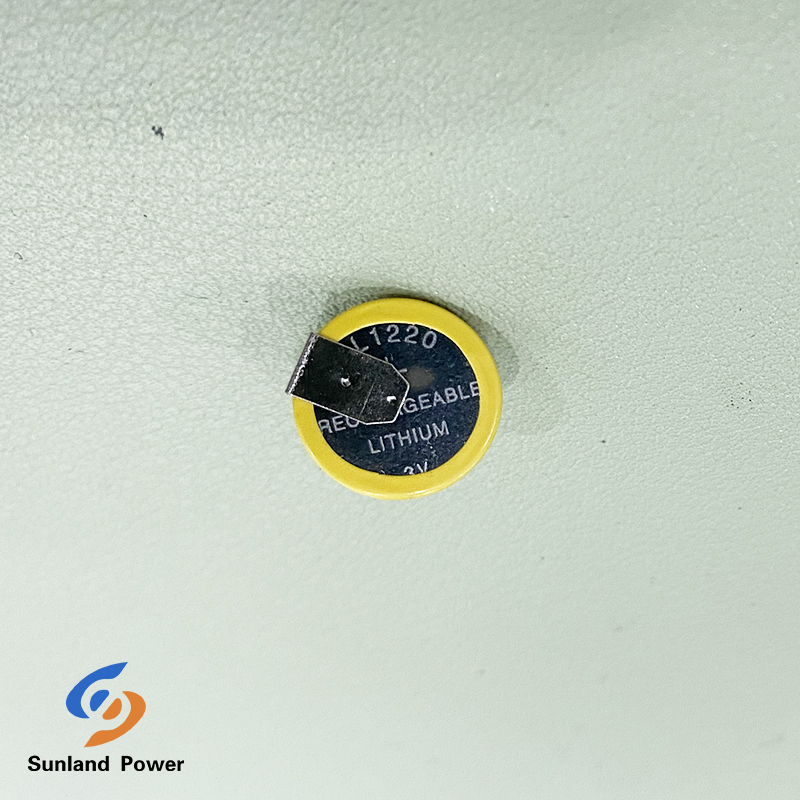

Rechargeable Lithium Primary Battery ML1220 3.0V 16mAh Coin / Button Cell Battery With Leg
Parameter:
Technical Requirements
1 Testing Conditions
1.1 Standard charge methods
1.1.1 Constant current/constant voltage charge method
At (25±5)℃, the cell should be charged to an upper voltage limit within (3.1~3.3)V with constant current ICharge, then the cell be charged at that constant voltage until the charge current falls to below 0.5ICharge. The said upper voltage limit is recommended to be 3.25V and no more than 3.3V.
1.1.2 Constant voltage charge method with protective resistor
At (25±5)℃, the charge circuit refers to the one in figure 1 and relevant parameters are demonstrated in Table 3. Charging continues until the charging current falls to less than 0.05mA.
1.2 Standard discharge procedures
1.2.1 Standard discharge at constant current
At (25±5)℃, the fresh cell should be discharged at constant current Iconst selected between 0.03 to 0.1mA for the duration of (%DOD x Nominal capacity/Iconst) hours , the cutoff voltage is 2.0V.
1.2.2 Standard discharge with constant resistance load
At (25±5)℃, the fresh cell be discharged continuously to the cutoff voltage of 2.0V with a loading equivalent resistor of 30kΩ in series.
1.3 Standard testing environment
Temperature: 20~30℃
Relative humidity: 25%~85%RH
Atmosphere pressure: 86~106kPa
Measuring and testing instruments as reference: program controlled Neware BTS standard coin battery
