Rechargeable Lithium Ion Battery 3.7V ICR14650 1200mah For Electric Shaver
Feature:
1. Main application for electric shaver
2. Can support 1C charger and discharge
3. Long cycle lifre more than 500 time,≥80% of initial capacity
4. Safty
Rechargeable Lithium Ion Battery 3.7V ICR14650 1200mah For Electric Shaver
Parameter:
No. | Items | Specifications |
Remark |
|
1 |
Nominal Capacity |
1200mAh |
0.5C Standard discharge |
|
2 |
Minimum Capacity |
1100mAh | ||
3 |
Nominal Voltage |
3.7V |
Mean Operation Voltage |
|
4 | Voltage of end of discharge | 3.0V |
Discharge cut-off voltage |
|
5 |
Charge voltage |
4.2V | By standard charge method | |
6 |
Standard charging method |
0.2C constant current,4.2V constant voltage charge to 4.2V,continue charging till current decline to ≤0.01C |
|
|
7 |
Charge current |
0.5C |
600mA |
Standard charge, charge time about :3.5h(Ref)
|
1C |
1200mA |
Rapid Charge, charge time about:2h(Ref)
|
||
8 |
Standard discharging method |
0.5C constant current discharge to 3.0V, |
|
|
9 |
Cell Internal Impedance |
≤50mΩ |
Internal resistance measured atAC 1KHZ after 50% charge
|
|
||||
11 |
Maximum charge current |
0.5C |
1200mA |
For continuous charging mod |
12 |
Maximum discharge current |
1C |
1200mA |
For continuous discharge method |
13 |
Operation Temperature and relative humidity Range
|
Charge |
0~45℃ 60±25%R.H. |
Charge at a very low temperature such as blew 0℃,will be get a lower capacity and reduce cycle life of the battery
|
Discharge |
-20~60℃ 60±25%R.H. |
|||
14 |
Storage temperature for a long time |
-20~25℃ 60±25%R.H. |
Do not storage exceed half year. Must charge once when storage for half year. must charge the battery which with protect circuit when storage for three months. |
Rechargeable Lithium Ion Battery 3.7V ICR14650 1200mah For Electric Shaver

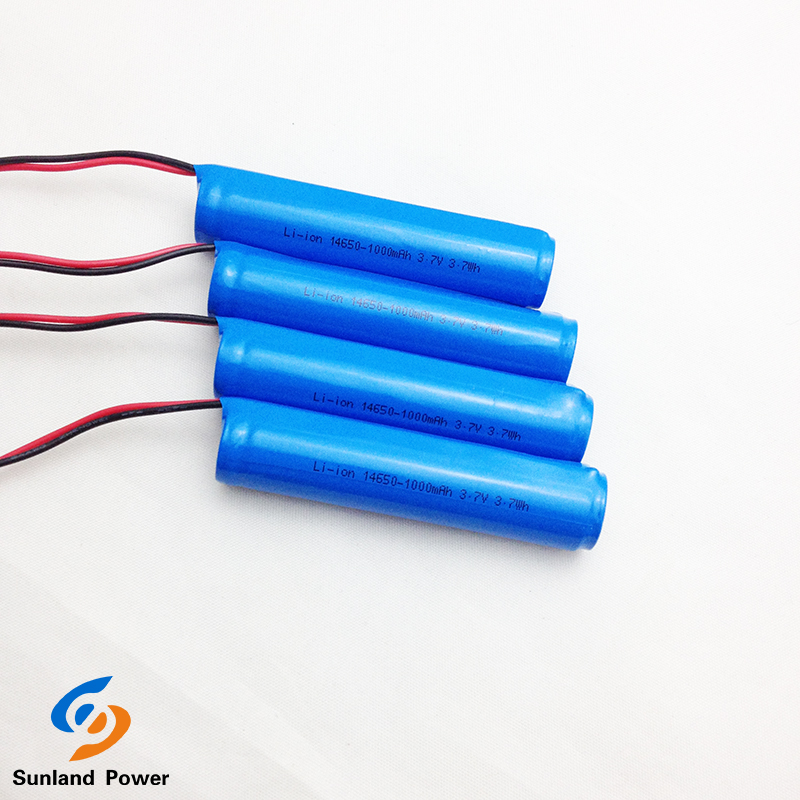

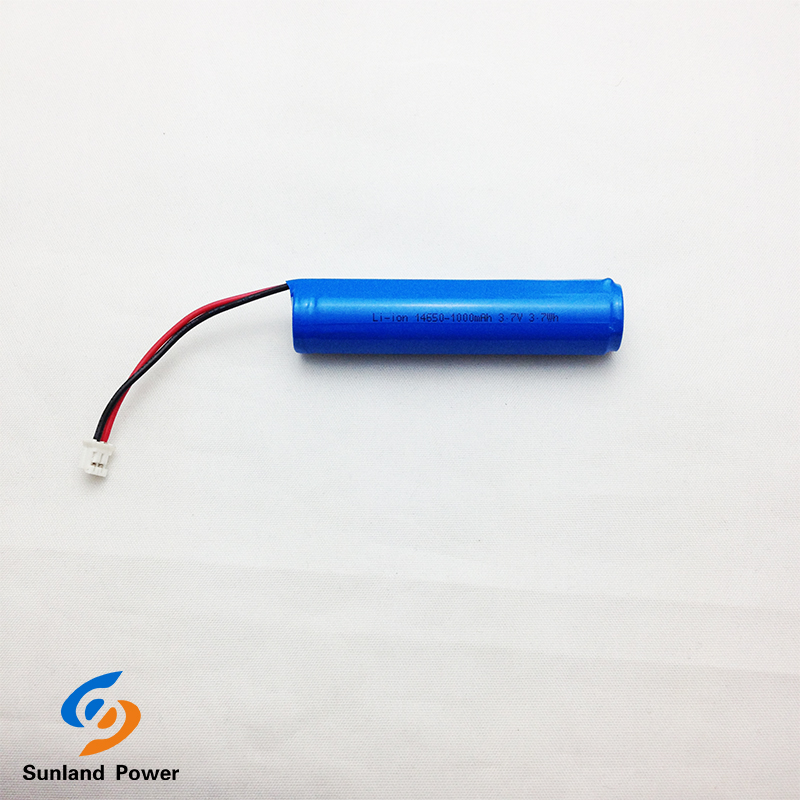

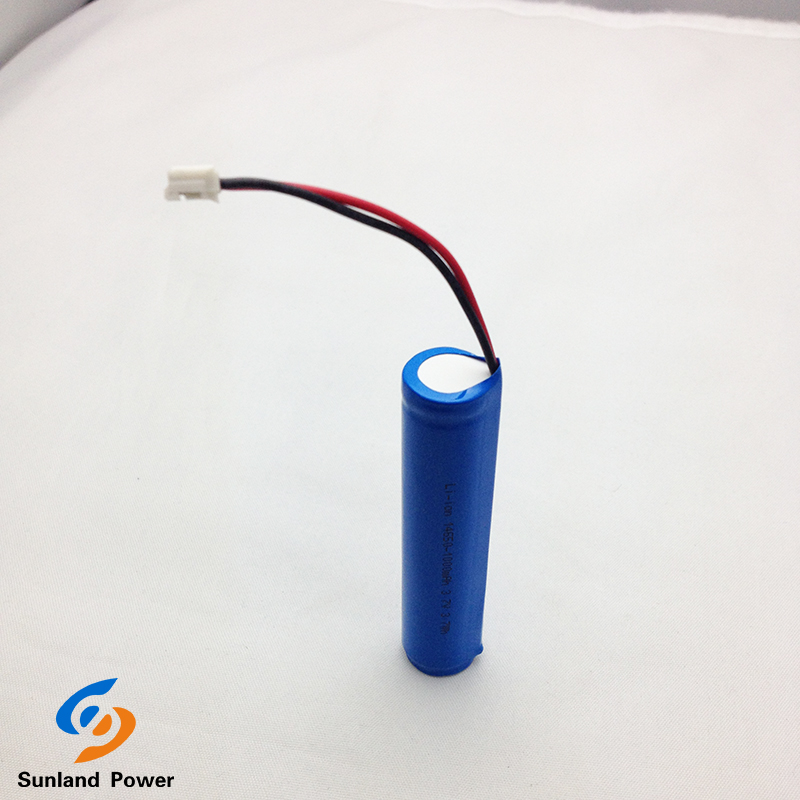

Picture:
Rechargeable Lithium Ion Battery 3.7V ICR14650 1200mah For Electric Shaver
Cycle Life
Charging and discharging battery as blew conditions:
0.5C standard charge to 4.2V end-off
0.5Cstandard discharge to 3.0V cut-off
Continuous charge and discharge for 500 cycles ,the capacity will be measure after the 500th cycle
