Feature:
1. Replacement 1.5V Alkaline Battery.
2. Rechargeable battery.
3. Long cycle life 1000 cycles.
4. With USB or Type C connector
5. Lithium ion battery
Rechargeable 1.5V AA Lithium Ion Battery With USB And Type C Connector

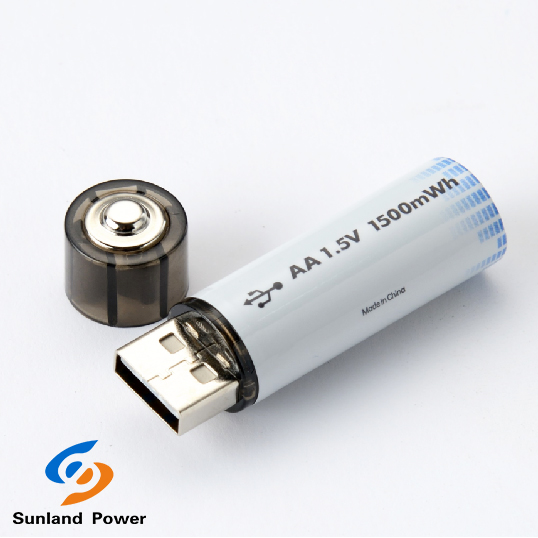

Picture:
Rechargeable 1.5V AA Lithium Ion Battery With USB And Type C Connector
Parameter:
| Item | Description | Unit | Parameter | Remark |
| 1 |
Open Voltage |
V | 1.5V(±0.04) |
Without Load |
| 2 |
Working currnet |
V | (1.5±0.05) | |
| 3 |
Cell |
V/mAh | 3.7V/750mAh |
Standard charge,then 1C discharge |
| 4 |
Power |
mWh | 2800 | (AA1.5V/2800mwh) |
| 5 |
USB charging voltage |
V | DC5.0 |
Input DC/5V±0.2 |
| 6 |
USB charging current |
mA | 450 |
Input DC5V/>0.5A |
| 7 |
Standard charging time |
Min | 150 |
(IEC Standard) Indicator status: The G-LED indicator blinks during charging, and the G-LED indicator keeps on when fully charged |
| 8 | Fast charging time | Min | 120 | 5V 2A fast charge:50min |
| 9 | Discharg current | mA |
Standard:350 (Max:1500) |
instant working current>2500mAh |
| 10 | Discharging time | Min | Standard:300 |
Standard discharging time:300min (Discharge current:350mA) |
| 11 | Discharge cut-off voltage | V | 0.9V | |
| 12 | Cycle life | Cycle | 1000+ |
1C charge and discharge. Restore the initial capacity ≥70%(refers to the standard charge and discharge of the cell) |
| 13 | Working temperature range | ℃ | -20~60 | |
| 14 | Storage temperature range | ℃ | -10~25 | -10~60℃≤30 days,-10~45℃≤90 days,-10~20℃≤360 dasy, recovery capacity must be at least 70% of the original capacity. |
| 15 | Storage ambient humidity | % | ≤85 | |
| 16 | Slef discharge/year | % | 10~15 | |
| 17 | Charging temperature rise | K | 16K | |
| 18 | Static current | uA | 〈8 | |
| 19 | LED Status | -- | Green G-LED | Blinking at 1Hz during charging, full of steady on, discharge off, discharge short circuit 10Hz high speed blinking! |
