Feature:
1. Long cycle life≥7000 times
2. Stud and flat available
3. Application widely used
Parameter:
|
Single Cell Charge Current (25℃) |
Max Continuous Charge Current |
1.0C |
|
Single Cell Discharge Current (25℃) |
Max Continuous Discharge Current |
1.0C |
| Module Charge Current (25℃) | Max Continuous Charge Current | 0.5C |
| Max Peak (50%SOC ,10s) | 1.0C | |
|
Module Discharge Current (25℃) |
Max Continuous Discharge Current | 1.0C |
| Max Peak (50%SOC ,10s) |
2.0C
|
| No. | Items | Specifications |
Remark |
|
1 |
Material system |
Lithium iron phosphate |
|
| 2 |
Nominal Capacity |
100Ah |
0.33C discharge at thermostatic room (25±2℃) |
| 3 |
Minimum Capacity |
100Ah | |
| 4 |
Nominal Voltage |
3.2V |
Mean Operation Voltage |
| 5 |
Delivery voltage |
3.00~3.30V (20%SOC) | Within 10 days from Factory |
| 6 |
Charge Voltage |
3.65V±0.03V | By standard charge method |
|
7 |
Standard charging method |
0.33C constant current,3.65V constant voltage charge to 3.65V,continue charging till current deadline to ≤0.05C at thermostatic room (25±2℃) ,rest for |
/ |
|
8 |
Standard discharging method |
0.33C constant current discharge to 2.5V, at thermostatic room (25±2℃) ,rest for 30min after fully discharged. |
/ |
|
9 |
Cell Internal Impedance |
≤0.7mΩ |
Internal resistance measured at AC 1KHZ after 50% charge |
|
10 |
Weight |
2.04±0.05Kg |
Pounch Cell Aluminum Shell 3.2V LiFePO4 Battery 100AH For EV / Solar Energy System

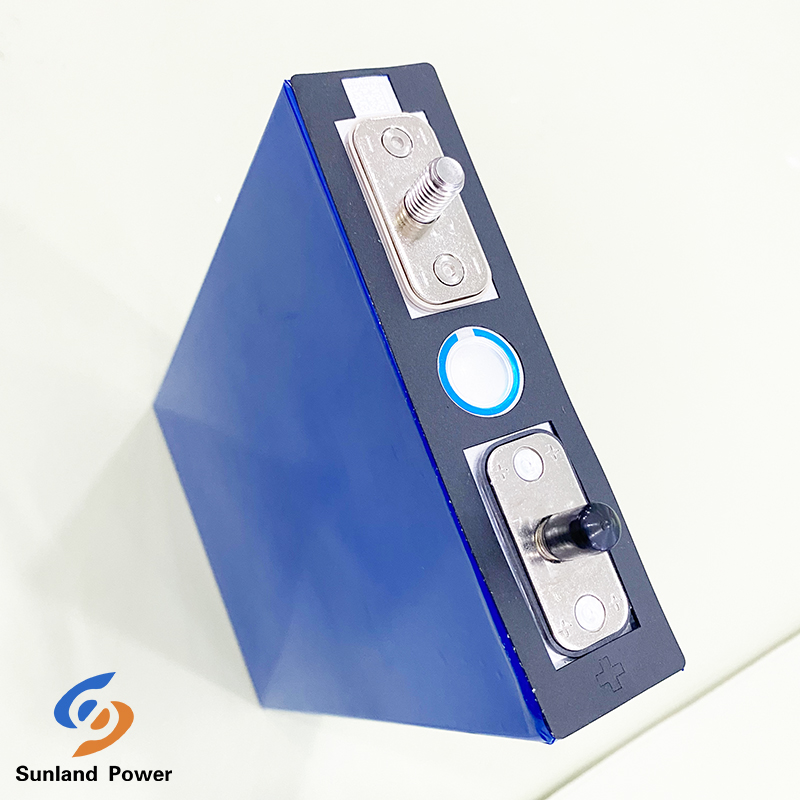

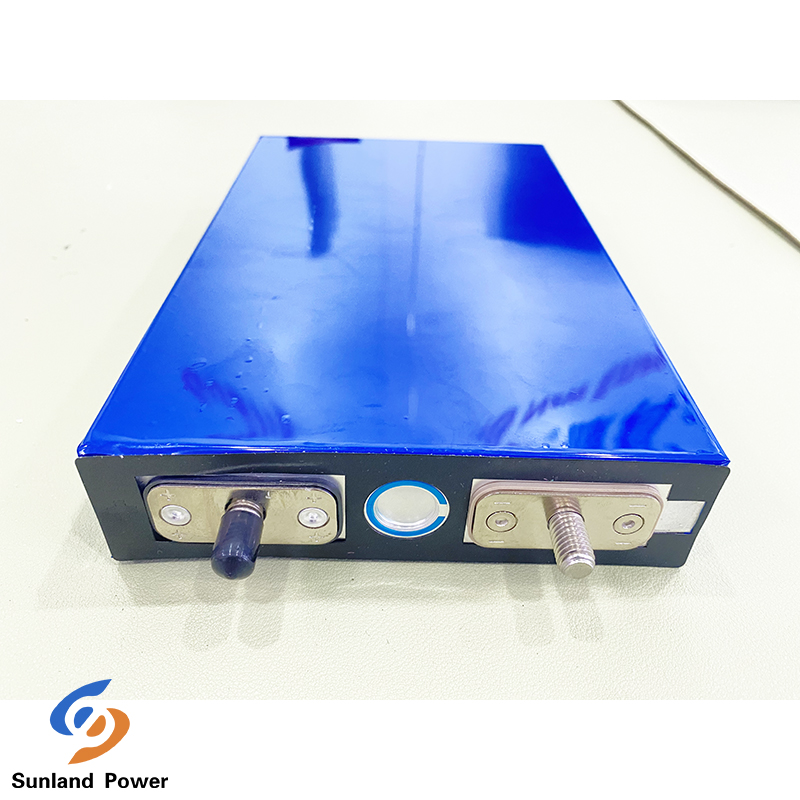

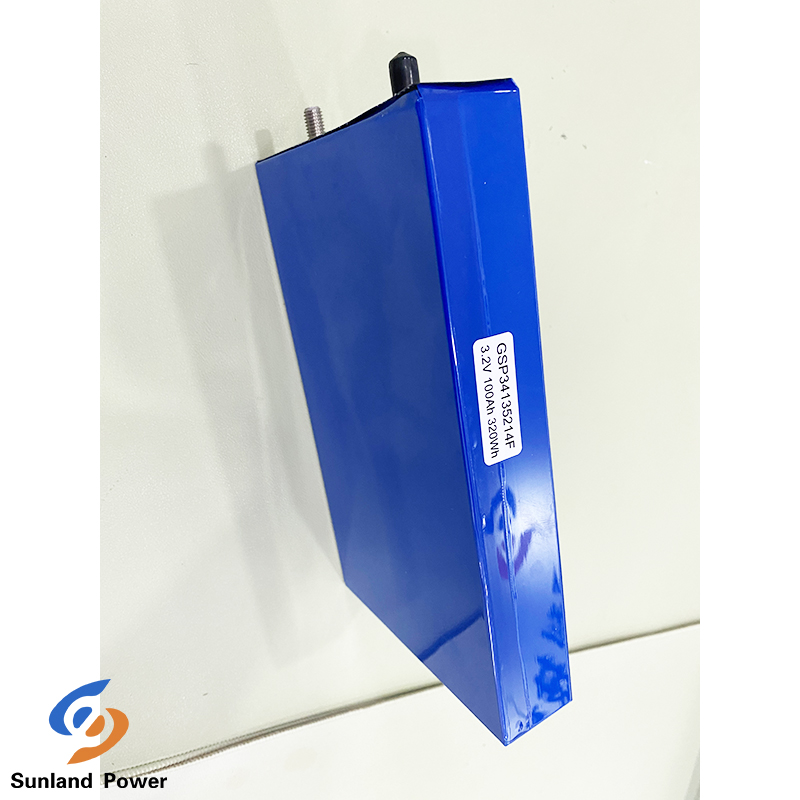

Picture：
Pounch Cell Aluminum Shell 3.2V LiFePO4 Battery 100AH For EV / Solar Energy System
Storage temperature for a long time:
Do not storage exceed half year. Must charge once when storage for half year. Must charge the battery which with protect Circuit when storage for three months. (under normal storage conditions for long periods required storage capacity can lead to decay and fall of the life cycle,such as Environmental requirements exceeded the storage capacity will be further exacerbated decline and decay cycle life)
