Nominal Voltage3.7V,Rated Capacity 180mAh.
LP422025 3.7V 180MAH Li-Ion Polymer Rechargeable Battery with or without pcb with your require
Certification: IEC62133; UL1642
Pollution-free passed ROHS
Long cycle life 500 times
No memory effect
PCM inside with short-circuit protection function,over-discharge, over charge, over current protection if customer need
Good consistency, low self discharge
Light weight, small and customized size
Wide application for electronics and industry
Quick Detail:
|
Place of Origin: |
Guang dong China |
Brand Name: |
TAC |
|
Nominal Capacity |
180mAh |
Minimum Capacity |
180mAh |
|
Nominal Voltage |
3.7V |
Type: |
Li-Ion Polymer |
|
OEM & ODM: |
Support |
Packing: |
PVC Packing |
|
Warranty: |
12months |
Environmental Compliance: |
ROHS, RRACH |
|
No. |
Items |
Specification |
Remark |
|
1 |
Nominal Capacity |
180mAh |
0.2C Standard discharge |
|
2 |
Nominal Voltage |
3.7V |
Mean Operation Voltage |
|
3 |
Delivery voltage |
3.7~3.9V |
Within 10 days from Factory |
|
4 |
Charge Voltage |
4.2V±0.03V |
By standard charge method |
|
5 |
Cell Internal Impedance |
≤150Ω |
|
|
6 |
Maximum charge current |
0.5C |
For continuous charging mod |
|
7 |
Maximum discharge current |
1C |
For continuous discharge mod |
|
8 |
Operation Temperature and relative humidity Range |
Charge |
0~45℃ 60±25%R.H. |
|
Discharge |
-20~60℃ 60±25%R.H |
||
|
9 |
Storage temperature for a long time |
-20~25℃ 60±25%R.H. |
|
Intelligent systems such as robot, intelligent navigation, etc.Computing, communication, precise control, remote collaboration and self-government functions.
Commodity of the Same Production
Maybe you need more size base on 100mah, we have more size for your refer
351624 100mah
061225 100mah
322121 95mah
Certification for TAC BATTERY Factory

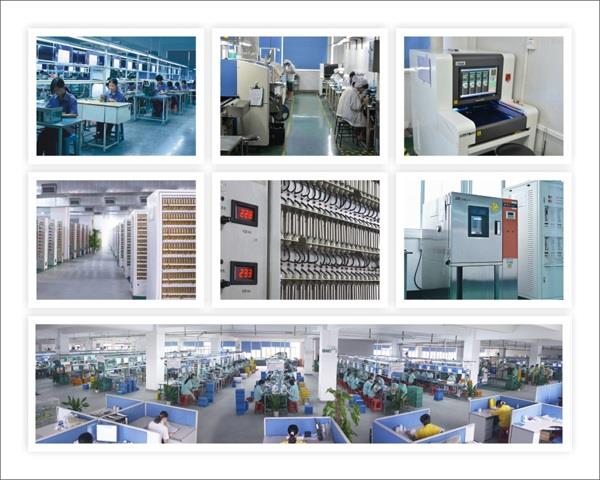

Production Line
