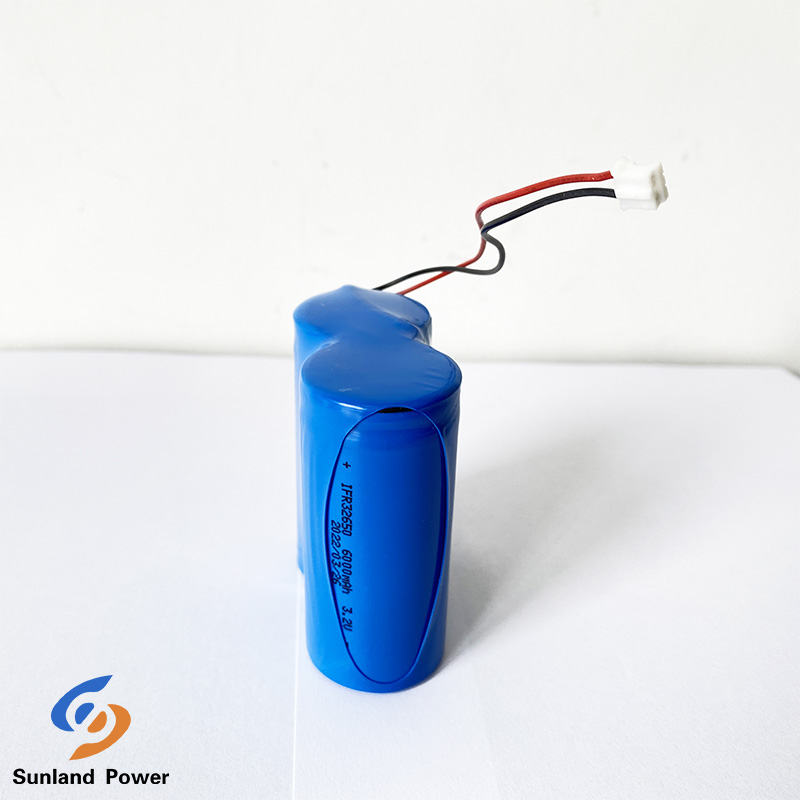

Pasture Solar Powered Electric Fence Energise Lithium Ion Battery 12AH 3.2V 32700 Cell 1S2P Structure
This GuangZhou Sunland New Energy Tech.Co.,Ltd LiFePO4 battery is a great option for those who need a reliable and powerful power source. It has amazing high temperature performance, making it perfect for use in electronic fence applications.
|
No. |
Items |
Specifications |
Remark |
|
1 |
Capacity for assembled cell discharging by 0.2C |
≥11.6Ah |
Standard discharging method |
|
2 |
Battery Voltage |
≥3.28 V |
Base on MOQ 10K Within 10 days from Factory |
|
Battery SOC |
Appr 30% | ||
|
3 |
Standard charge condition |
Charge with 2A constant current and 3.65V constant voltage, charge to 3.65V,continue charging till current decline to ≤0.01C |
Charge voltage: 3.65V±0.03V Charge current:2A |
| 4 |
Max continuous charge current |
2A |
|
|
5 |
Standard discharging method |
2A constant current discharge to 2.5 V, |
|
| 6 |
Max continuous discharge current |
2A |
|
|
7 |
Internal Impedance |
Assemblage Impedance |
Measure the Red and black wire of the connector after assembling. |
| 8 |
Charge upper limit temperature |
0-45℃ |
Charging at low temperature, capacity and cycle life will reduce. |
| 9 |
Discharge upper limit temperature |
-20-60℃ | |
| 10 | Connector | JST PHR-4P |
|
| 11 | Wire | UL1007 24AWG |
Outside diameter Max :1.5mm |
| 12 | Date code | Cell date code and battery date code not beyond 3month | |
| 13 | Vbatt(OCV) | 3.75±0.05V |
