Non Rechargeable 1.5V 14500 / 14505 AA 3000mAh Lithium Battery With UL1642 For Keypad
Specification:
 No. |
Items | Specification |
| 1 |
Nominal Voltage | 1.5 V |
| 2 |
Rated Capacity | 3000 mAh |
| 3 |
Working Voltage | 1.30V @ 200mA discharge rate |
| 4 |
Maximum pulse discharge current | 4000mA |
| 5 |
Maximum continuous discharge current | 3000mA |
| 6 |
Discharge Cut-off Voltage | 0.80V |
| 7 |
Volume | 8.0 cubic centimeters |
| 8 |
Weight | Approx. 15 g |
| 9 |
Lithium Content | Less than 1 gram per cell |
|
10 |
Dimensions |
Diameter: 14.0±0.5 mm |
| Height: 49.85±0.65 mm | ||
| 11 |
Operating Temp. | -40 C to 60 C |
| 12 |
Storage/Shipping Temp. | -20 C to 40 C |
| 13 |
Storage/Shipping Humidity | ≤75 % |
| 14 |
Shelf Life | 10 Years |

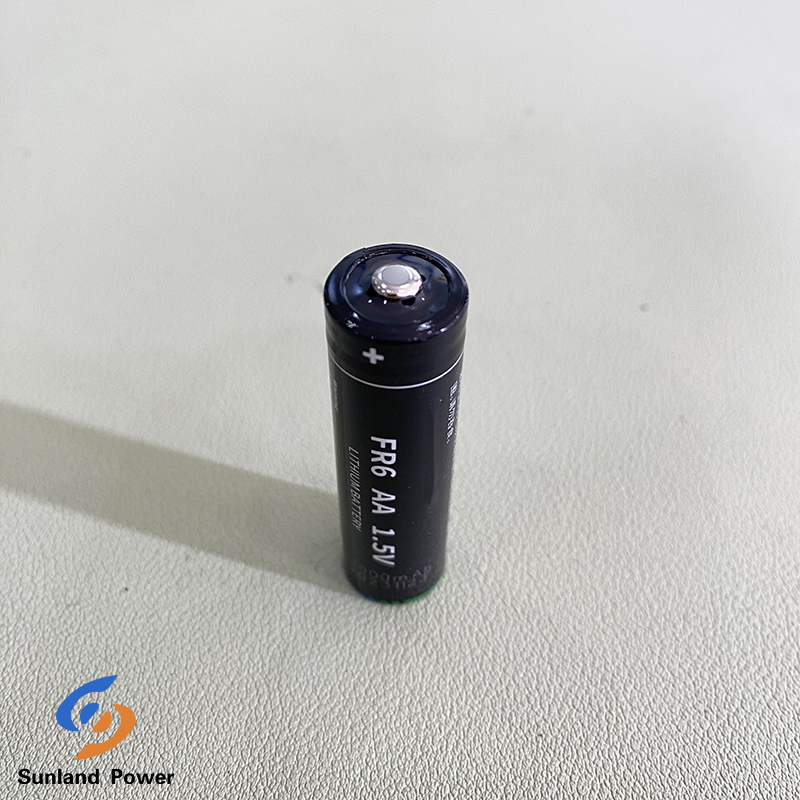

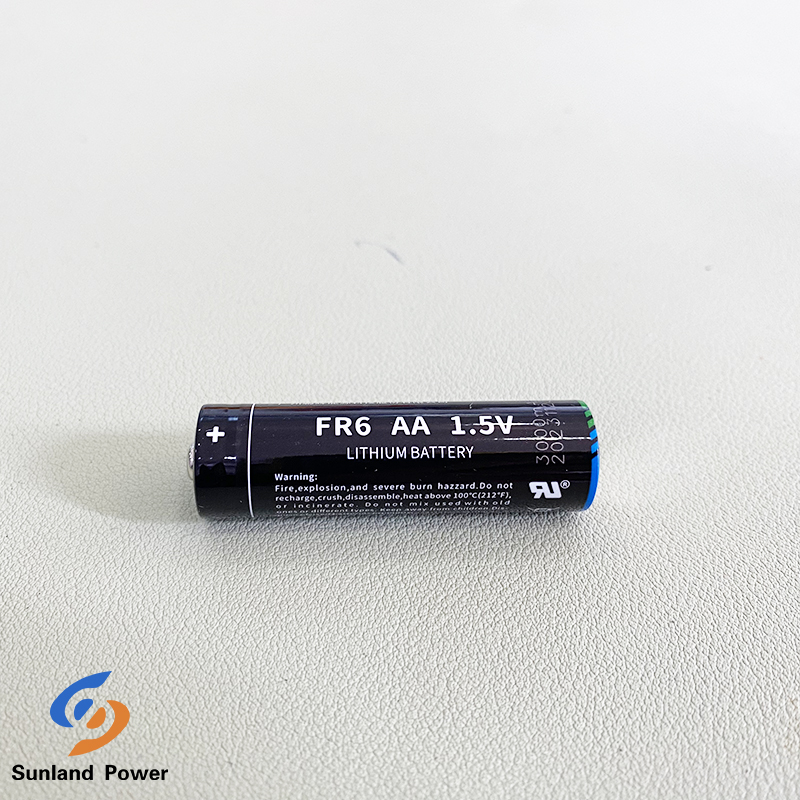

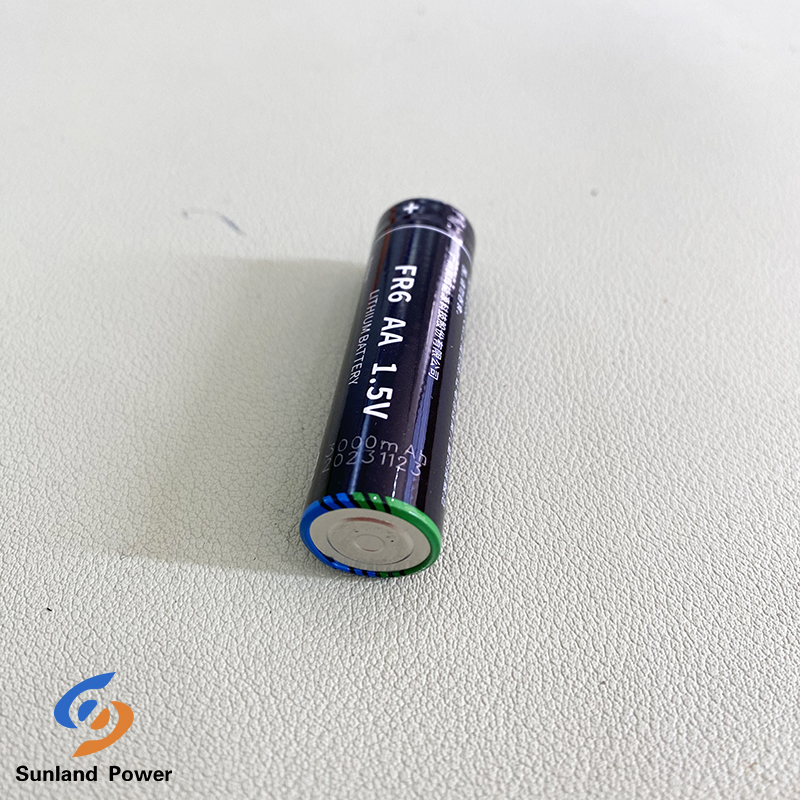

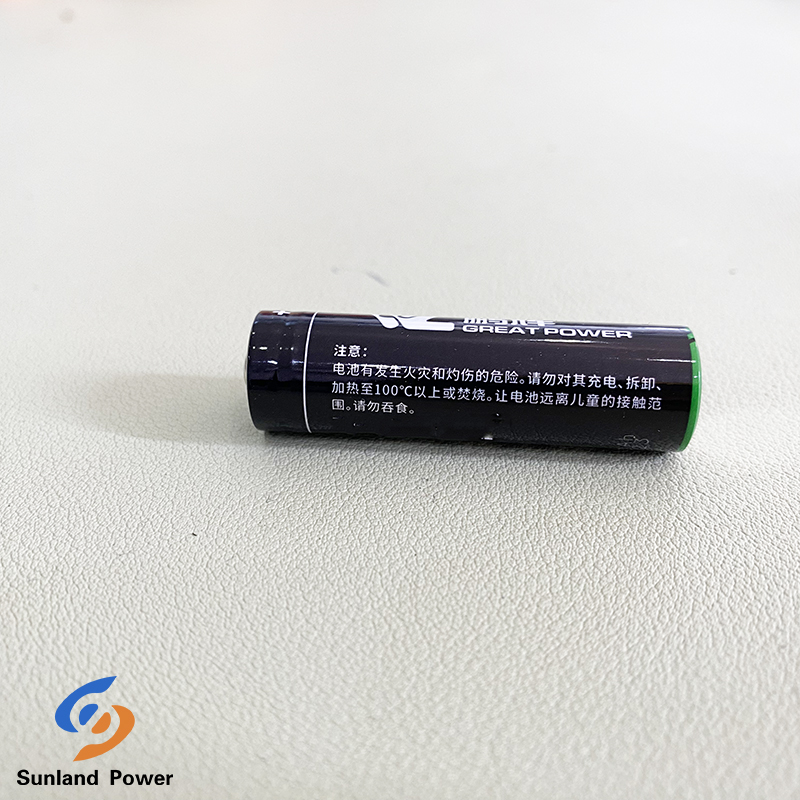

Pictures:
Non Rechargeable 1.5V 14500 / 14505 AA 3000mAh Lithium Battery With UL1642 For Keypad
Non Rechargeable 1.5V 14500 / 14505 AA 3000mAh Lithium Battery With UL1642 For Keypad
Cautions in use
To ensure proper use of the battery please read the manual carefully before using it.
Handling
1. Do not expose to, dispose of the battery in fire.
2. Do not put the battery in a charger or equipment with wrong terminals connected.
3. Avoid shorting the battery
4. Avoid excessive physical shock or vibration.
5. Do not disassemble or deform the battery.
6. Do not immerse in water.
7. Do not use the battery mixed with used or other different make, type, model
8. Keep out of the reach of children.
Storage
1. Store the battery in a cool, dry and well-ventilated area.
2. Disposal Regulations vary for different countries.
4. Dispose of in accordance with local regulations.
