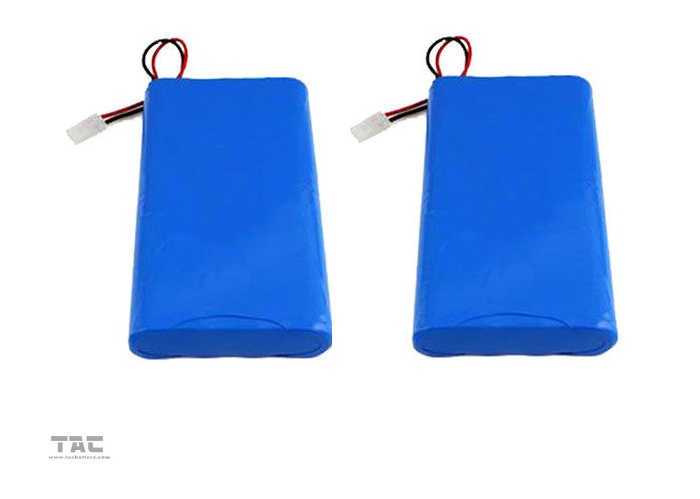

Nominal Voltage is 6.4V and the rated capacity is 4.5Ah
the battery with normal performance PCM, wire and connector , support OEM
Deep cycle for 2000 times.
The battery pack application for various Street Solar Light
|
Item |
General Parameter |
|
Rated Capacity |
4.5Ah |
|
Minimal Rated |
4.0Ah |
|
Nominal Voltage |
6.4V |
|
Cycle Life |
Higher than 60% of the Initial Capacity of the Cells |
|
Discharge cut-off voltage |
≥4.6V |
|
Charging cut-off voltage |
15.6V |
|
Cell and assembly method |
IFR18650EC-1.5AH |
|
Standard discharge |
Constant current 0.2C |
|
Maximum Charge Current |
4.5A |
|
Maximum Discharge Current |
10A |
|
Operation Temperature Range |
Charge: 0~45℃ |
|
|
Discharge: -10~50℃ |
|
Storage Temperature Range |
Less than 1 year : 0~25℃ |
|
|
Less than 3 months:-5~35℃ |
|
Weight |
Approx: 285g |
|

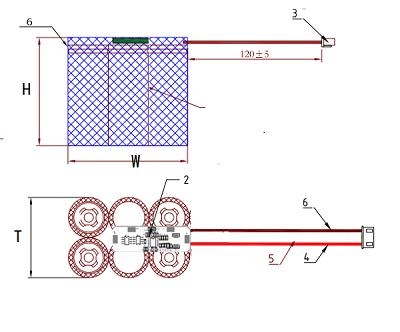

Pack Dimension |
High:71.5mm
|
1. Factory Sell Directly 6.4v 4.5ah 18650 lithium battery pack lifepo4 battery for solar street light
2. IP66 Anti-Water Outer shell with customer's require
3.High energy density.
4. Long cycle life, more than 2000 charge/discharge cycles ( 80% capacity remained ).
5. Minimal self-discharge, less than 3% monthly.
6. Wide temperature range, operation from :-20°C~+60°C
7. Be charged & discharged at anytime because of non-memory.
8. Environmentally compatible pass REACH\ BIS
9. Elite Design, High level of safety, vision Lithium ion batteries catch no fire and cause no explosion in breaking experiment, with acupuncture, smash, drop, and so on.
10. Hot sales similar model from 12V 20AH-50AH liFepo4 battery pack
