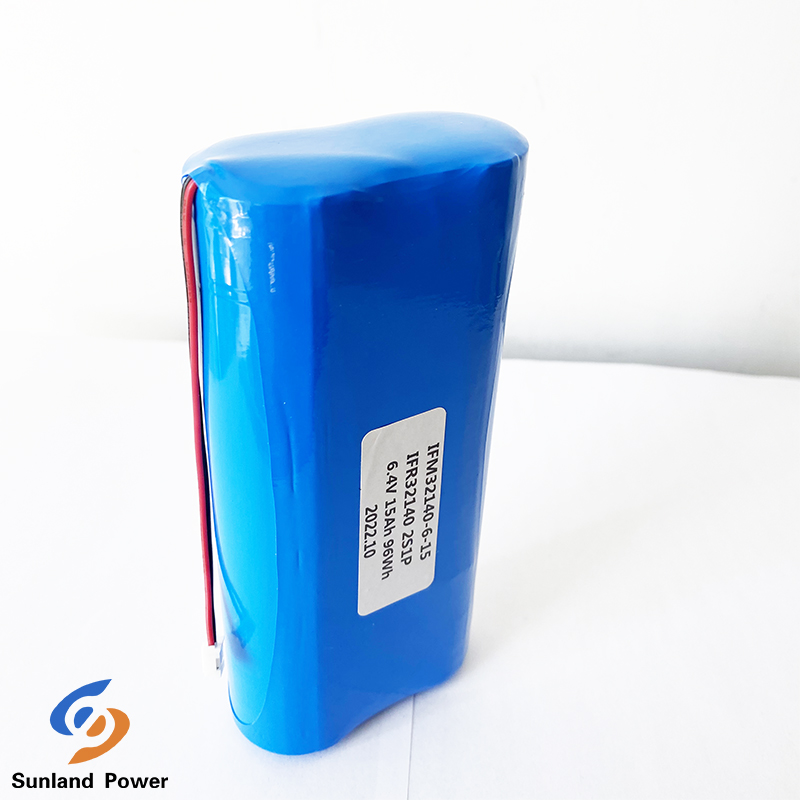

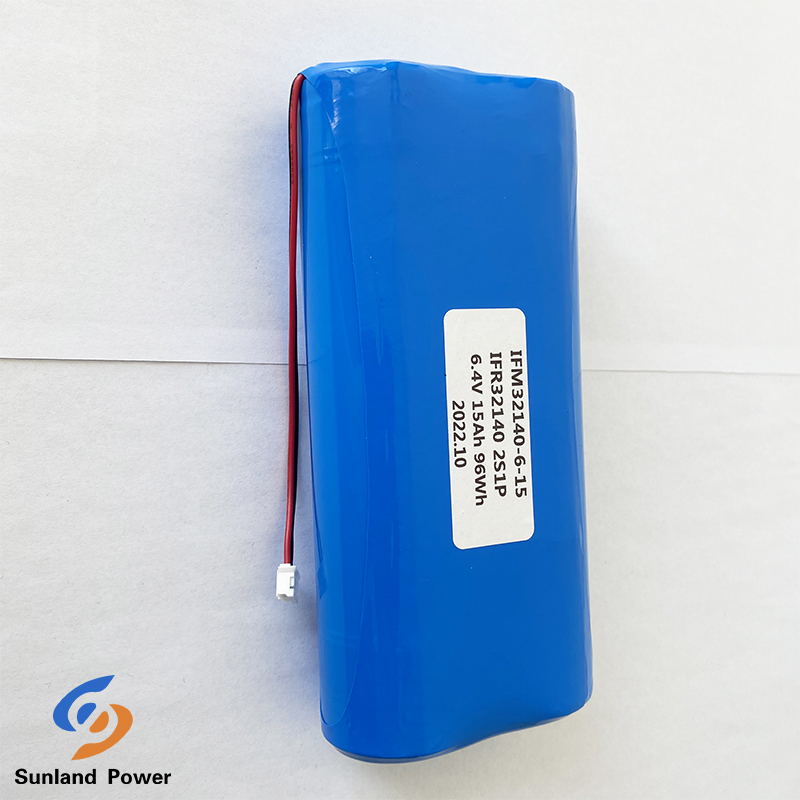

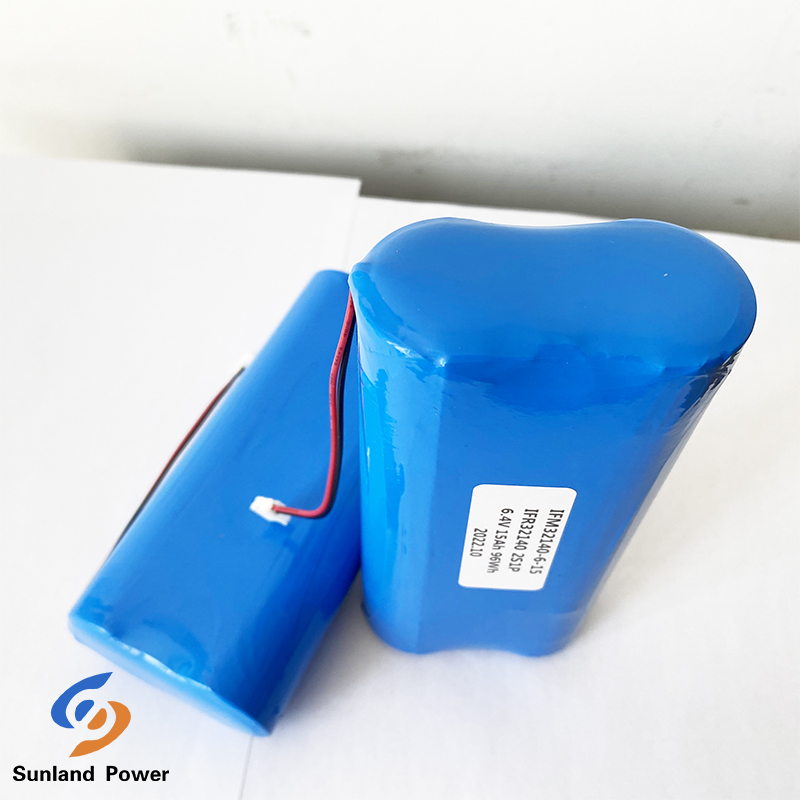

IFR32140 2S1P 6.4V 15AH Battery Pack 3.2V LiFePO4 Battery For Electric Fencing With Solar Powered
Description:
1. MODEL :IFM32140-6-15
2. Part No: P-2022-0051
3. IFR32700 2S2P 6.4V12AH 76.8Wh
4. Nominal Capacity:15AH
5. Nominal Voltage:12.8V
6. Weight:610g
7. Size:35mm*67.5mm*147mm
8. Max continuous charge current:2A
9. Max continuous discharge current:2A
|
No. |
Items |
Specifications |
Remark |
|
1 |
Capacity for assembled cell discharging by 0.2C |
≥14.5Ah |
Standard discharging method |
|
2 |
Battery Voltage |
≥6.56V |
Base on MOQ 10K Within 10 days from Factory |
|
Battery SOC |
Appr 30% | ||
|
3 |
Standard charge condition |
Charge with 2A constant current and 7.3V constant voltage, charge to 7.3V,continue charging till current decline to ≤0.01C |
Charge voltage: 7.3V±0.03V Charge current:2A |
| 4 |
Max continuous charge current |
2A |
|
|
5 |
Standard discharging method |
2A constant current discharge to 5V, |
|
| 6 |
Max continuous discharge current |
2A |
|
|
7 |
Internal Impedance |
Assemblage Impedance |
Measure the Red and black wire of the connector after assembling. |
| 8 |
Charge upper limit temperature |
0-45℃ |
Charging at low temperature, capacity and cycle life will reduce. |
| 9 |
Discharge upper limit temperature |
-20-60℃ | |
| 10 | Connector | JST PHR-4P |
The original JST connectors (PHR-4P) |
| 11 | Wire | UL1007 24AWG |
Outside diameter Max :1.5mm |
| 12 | Date code | Cell date code and battery date code not beyond 3month |
