IFR26650EC 4S7P 12.8v 21Ah Lifepo4 Battery For Lighting
Quick Detail:
|
Model Number: |
12.8V21Ah |
Brand Name: |
TAC |
|
Nominal Voltage: |
12.8V |
Rated Capacity: |
21AH |
|
Type: |
LiFePO4 Lithium Battery |
Size: |
L202:W124:H75mm |
|
Weight: |
2.7KG |
Certification: |
UL,ROHS,CE,CK ,BIS. |
|
OEM & ODM: |
Support |
Warranty: |
12Months |
IFR26650EC 4S7P 12.8V 21Ah LiFePo4 Battery Specification:
|
No.
|
Item
|
General Parameter
|
Remark
|
|
1 |
Rated Capacity
|
21Ah |
Standard discharge（0.2 C5）after standard charge（0.2 C5）
|
|
2 |
Minimal Rated Capacity
|
20.3Ah |
|
|
3 |
Nominal Voltage
|
12.8V |
|
|
5 |
Discharge cut-off voltage
|
10.0V |
10.0V( recommended)
|
|
6 |
Charging cut-off voltage
|
14.6V |
14.6V (recommended) |
|
7 |
Cell and assembly method
|
IFR26650EC-3.3AH |
4S7P |
|
8 |
Housing material
|
PVC |
|
|
9 |
Weight
|
Approx/:2.7Kg |
|
|
10 |
Max.Dimension
|
Height:75mm |
|
|
Width:124mm |
|||
|
Length:202mm |
Packaging & Delivery:
|
Packaging Details:
|
Standard package of 12.8v Lifepo4 Battery
|
|
Delivery Detail:
|
Shipped in 15 days after payment
|
Application:
☆ Electric tools
☆ Electronic product
☆ Energy storage
☆ Electric vehicles
☆ Medical instruments

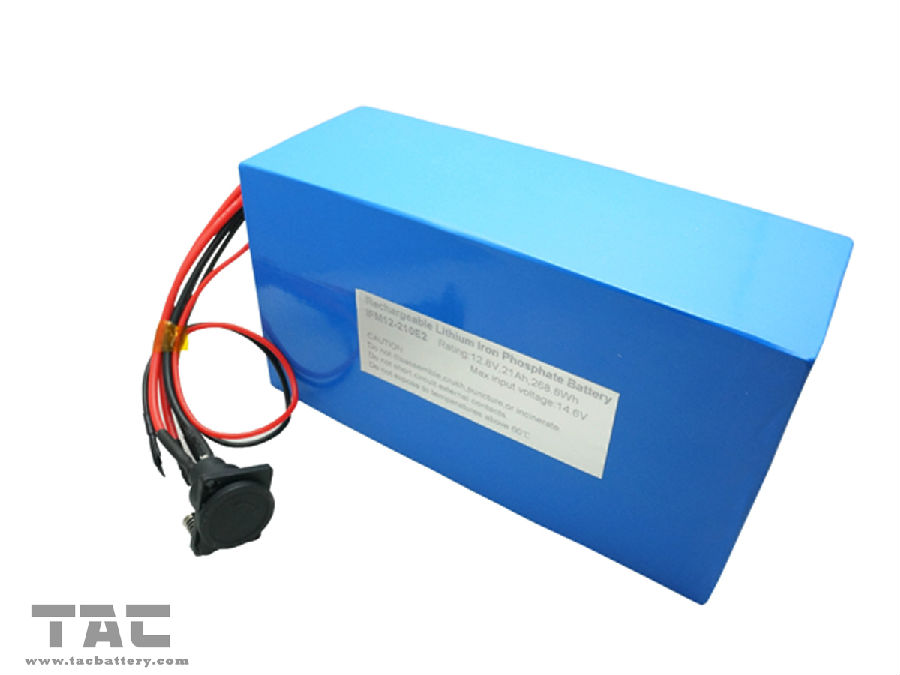

Picture for IFR26650EC 4S7P 12.8v 21Ah Lifepo4 Battery
