Parameter:
| No. | Items | Specifications |
Remark |
| 6.1 |
Combination Method |
1parallels 2series | |
| 6.2 |
Rating Capacity |
5Ah |
0.2C constant current(CC) discharge to 6V |
| 6.3 |
Nominal voltage |
7.4V | |
| 6.4 |
Max. charge voltage |
8.4V |
0.2C constant current(CC) charge to 8.4V,then constant voltage (CC)8.4V charge till charge current decline to ≤0.02C
|
| 6.5 |
Discharge cut-off voltage |
6V | |
| 6.6 |
Charge current |
2A | |
| 6.7 |
Continuous Output Discharging current |
2A | |
| 6.8 |
Dimension |
100L*60W*17Tmm | |
| 6.9 |
Operating Temperature |
0~45℃ |
Charging |
| -10~55℃ |
Discharging |

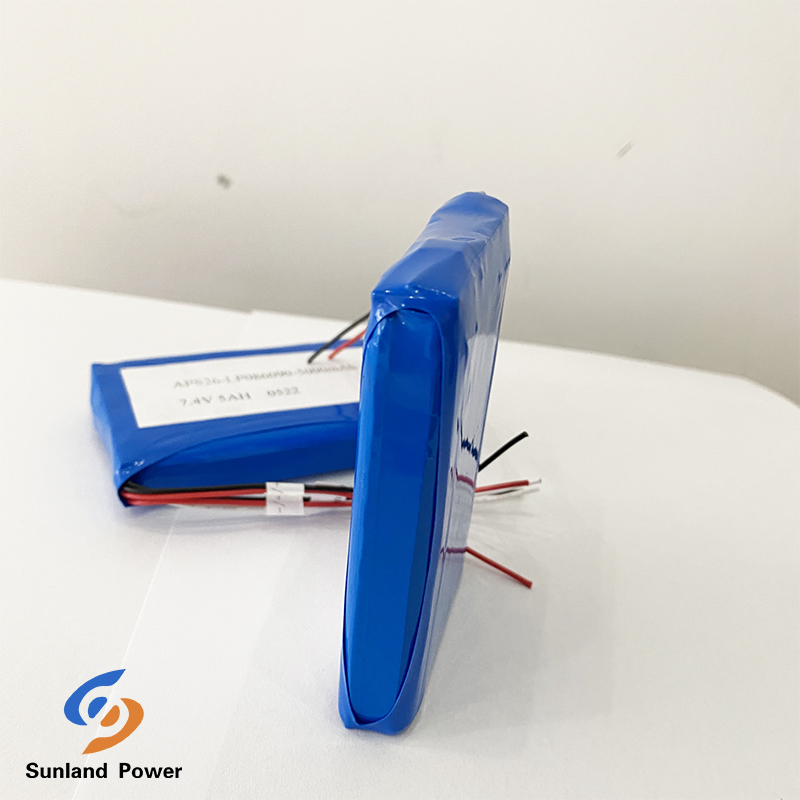

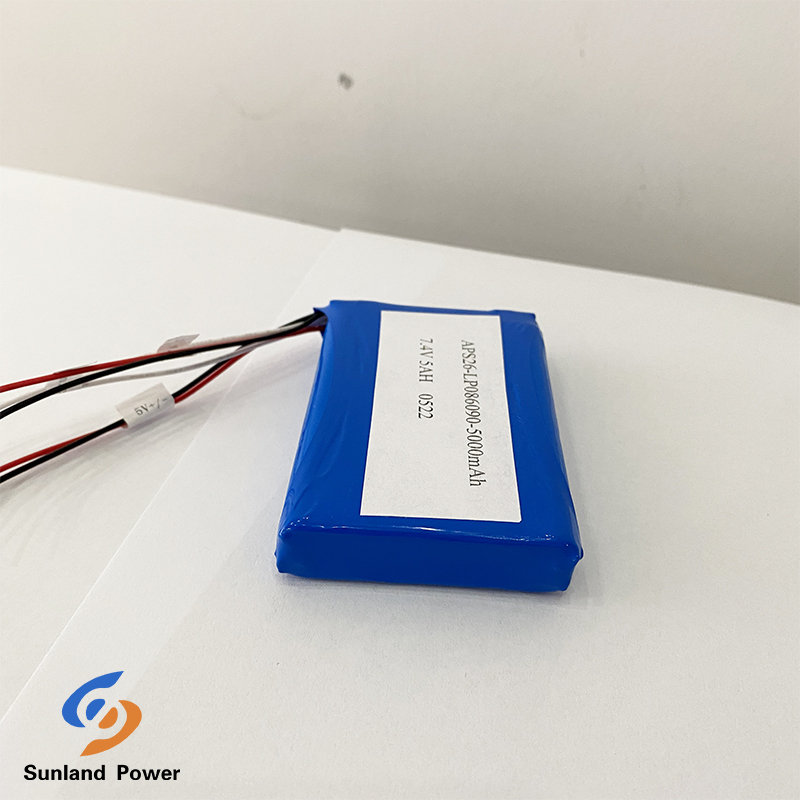

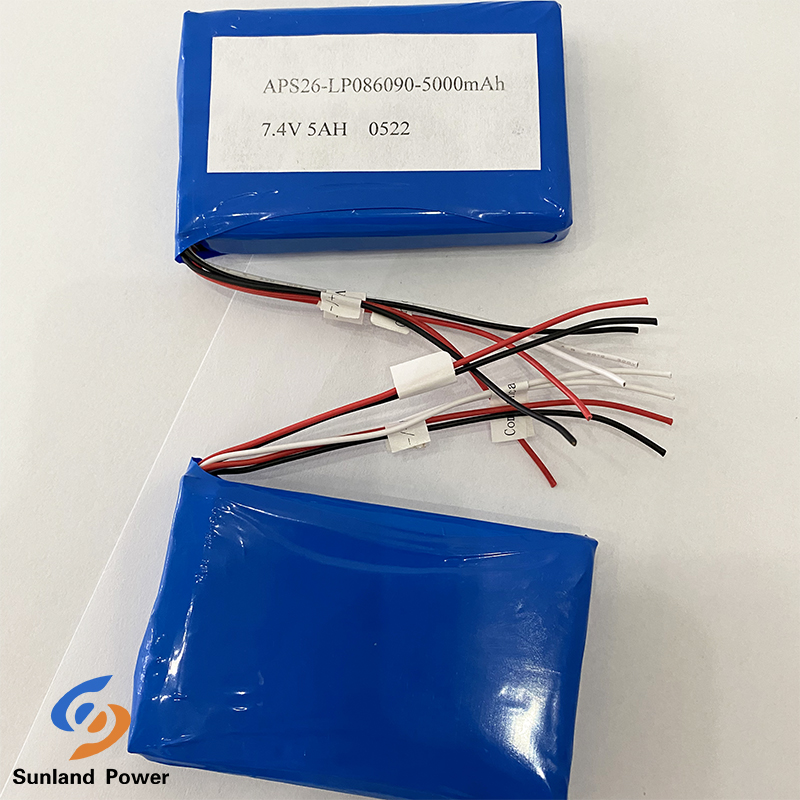

7.4V 5AH LP806090 2S1P Polymer Lithium Ion Batteries With I2C Function With Fuel Gauge
| NO | Items | Units: mm | Remark | |
| 1 | Thickness | T | 18 | Max |
| 3 | Width | W | 60 | Max |
| 4 | Height | H | 93 | Max |
| 5 | Cable Length/ | L | 100±3 | |
| NO | Part name | Quantity | Unit | Remark |
| 1 | Cell | 2 | ea | Great Power |
| 2 | Solder | 0.04 | g | Lead Free |
| 3 | PCM | 1 | Ea |
SH366003+ +PE616BA*2+ETA2893 |
| 4 | Cable | 6 | Ea | Charge,discharge,data |
| 5 | PVC | 1 | Blue PVC |
The battery to be charge in accordance with standard charge condition at 20~25℃,then storage the battery at an ambient temperature 20~25℃ for 28 days.
Measure the capacity after 30 days with 0.2C at 20~25℃ as retention capacity more than 85%
