Feature:
1. Environmentally friendly.
2. Long cycle life more than 2000 times.
3. Convenient, no need to refuel or change oil frequently.
4. Long endurance.

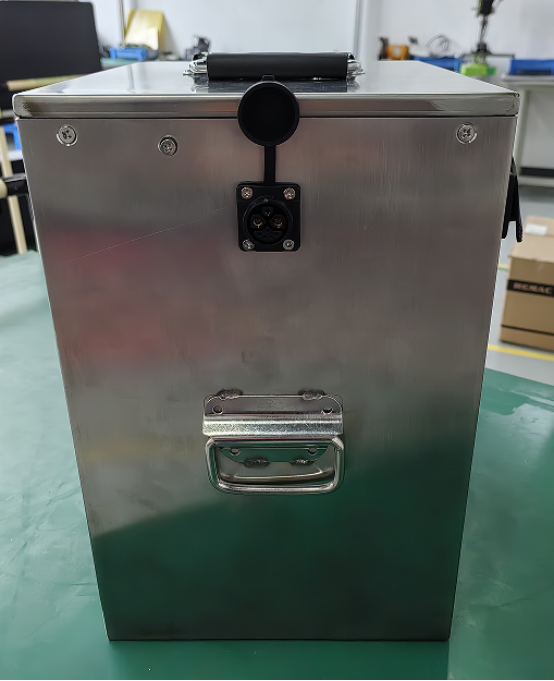

72V 45AH LiFePO4 Battery Pack With LCD/CAN/RS485/URAT Communication For Electric Motorcycle
Parameter:
|
No. |
Item |
General Parameter |
Remark |
| 1 |
Rated Capacity |
45Ah |
Standard discharge 0.2C after standard charge 0.2C |
| 2 |
Minimum Capacity |
42.75Ah | |
| 3 |
Nominal Voltage |
73.6V | |
| 4 |
Life Expectation
|
Higher than 80% of the Initial Capacity of the battery |
1)Charge:[email protected] to 83.95V, then CV till current to 0.02C 2)Rest: 30min. 3)Discharge: 0.2C to 57.5V Temperature:20±5℃ Carry out 2000cycles |
| 5 |
Discharge cut-off voltage |
2.5V/Cell(≥57.5V) | |
| 6 |
Charge cut-off voltage |
3.65V/Cell(≤83.95V) | |
| 7 |
Cell and assembly method |
EVE-C33-15.0Ah | |
| 8 |
Housing material |
Stainless steel-1.2mm |
|
No. |
Item |
General Parameter |
Remark |
| 9 |
Standard charge |
0.2C constant current (CC) charge to 83.95Vthen constant voltage (CV) 83.95V charge till charge current decline to ≤0.05C |
Charge time : Approx 7h |
| 10 |
Standard discharge |
Constant current 0.2C,Cut-off voltage 57.5V | |
| 11 |
Maximum Charge Current |
25A@20℃ | |
| 12 |
Maximum Continuous Discharge Current |
45A@20℃ 80A＜20min@20℃ 100A＜10min@20℃ |
120A＜10S (tunable) |
| 13 |
Operation Temperature Range |
Charge: 0～55℃ |
60±25%R.H. 23 ± 5°C recommended |
| Discharge: -20～60℃(cell surface temperature≤80℃) | |||
| 14 |
Storage Temperature Range |
Less than 1 year : 0～25℃(SOC≥50%) |
60±25%R.H. at the shipment state
|
|
Less than 3 months:-5～35℃(SOC≥50%) |
|||
| 15 |
Approx. Weight |
23Kg | |
| 16 |
Internal resistance |
50mΩ | 1KHz,AC |
| 17 |
Dimension |
L*W*H=340*260*225mm ±0.5mm | |
| 18 | Terminals |
DM80-100A- M25-8P-40A- |
|
| 19 |
Communication |
LCD/CAN/RS485/URAT | |

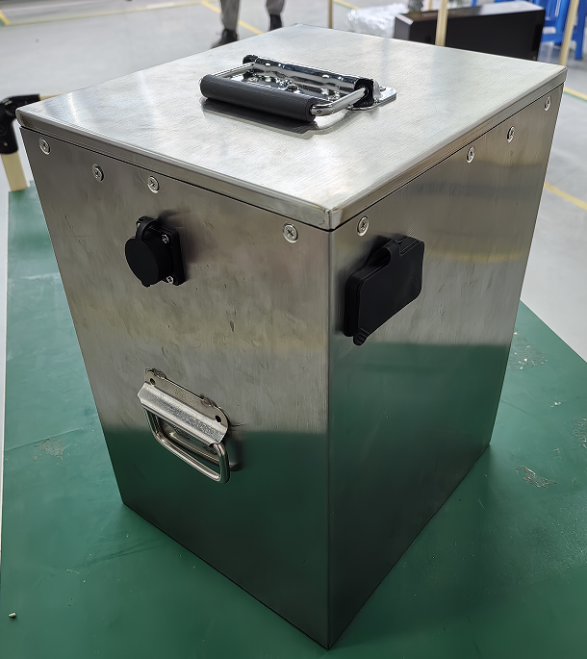

72V 45AH LiFePO4 Battery Pack With LCD/CAN/RS485/URAT Communication For Electric Motorcycle
Tips:
1) Keep the battery against high temperature. Otherwise it will cause battery heat, get into fire or lose some functions and reduce the life;
2)When the battery run out of power, please charge it within 15 days；
3) Please use the original or recommended charger for this battery
4) If the battery leaks and get into the eyes or skin, do not wipe, instead, rinse it with clean water and see doctor immediately;
5)Do not use the battery when there exist abnormal conditions such as odour, discoloration, noise, leakage, serious deformation, etc.
l6)Please far away from children or pets.
