72V 30AH Lithium Ion Battery Pack With LCD Display RS485 For Electric Motorcycle Tricycle
Feature:
1. Environmentally friendly.
2. Long cycle life more than 2000 times.
3. Convenient, no need to refuel or change oil frequently.
4. Long endurance.
72V 30AH Lithium Ion Battery Pack With LCD Display RS485 For Electric Motorcycle Tricycle
Parameter:
|
No. |
Item |
General Parameter |
Remark |
| 1 |
Rated Capacity |
30Ah |
Standard discharge 0.2C after standard charge 0.2C |
| 2 |
Minimum Capacity |
28.5Ah | |
| 3 |
Nominal Voltage |
73.6V | |
| 4 |
Life Expectation
|
Higher than 80% of the Initial Capacity of the battery |
1)Charge:[email protected] to 83.95V, then CV till current to 0.02C 2)Rest: 30min. 3)Discharge: 0.2C to 57.5V Temperature:20±5℃ Carry out 2000cycles |
| 5 |
Discharge cut-off voltage |
2.5V/Cell(≥57.5V) | |
| 6 |
Charge cut-off voltage |
3.65V/Cell(≤83.95V) | |
| 7 |
Cell and assembly method |
EVE-C33-15.0Ah | |
| 8 |
Housing material |
|
No. |
Item |
General Parameter |
Remark |
| 9 |
Standard charge |
0.2C constant current (CC) charge to 83.95Vthen constant voltage (CV) 83.95V charge till charge current decline to ≤0.05C |
Charge time : Approx 7h
|
| 10 |
Standard discharge |
Constant current 0.2C,Cut-off voltage 57.5V | |
| 11 |
Maximum Charge Current |
25A@20℃ | |
| 12 |
Maximum Continuous Discharge Current |
30A@20℃ 75A＜15min@20℃ |
90A＜10S |
| 13 |
Operation Temperature Range |
Charge: 0～45℃ |
60±25%R.H. 23 ± 5°C recommended |
| Discharge: -20～60℃(cell surface temperature≤80℃) | |||
| 14 |
Storage Temperature Range |
Less than 1 year : 0～25℃(SOC≥50%) |
60±25%R.H. at the shipment state
|
|
Less than 3 months:-5～35℃(SOC≥50%) |
|||
| 15 |
Approx. Weight |
19Kg | |
| 16 |
Internal resistance |
50mΩ | 1KHz,AC |
| 17 |
Dimension |
L*W*H=360*230*160mm ±2mm | |
| 18 | Terminals |
CHOGORI Banga100 series 2+6 male socket 180℃ |
|
| 19 |
Communication |
LCD/CAN/RS485 |
72V 30AH Lithium Ion Battery Pack With LCD Display RS485 For Electric Motorcycle Tricycle

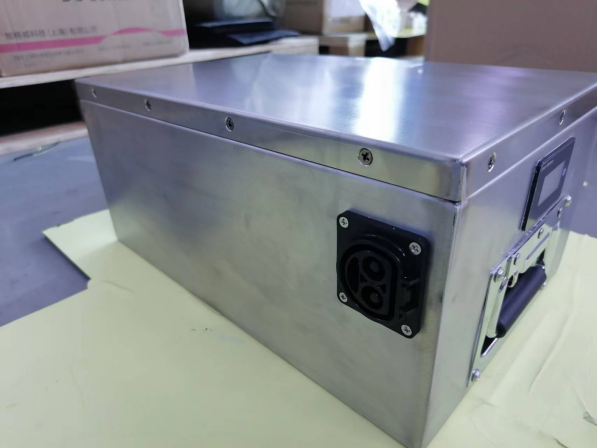

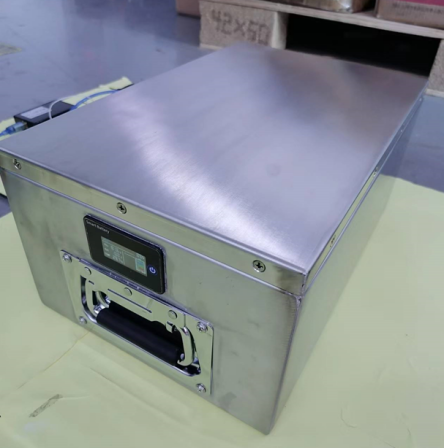

Picture:
72V 30AH Lithium Ion Battery Pack With LCD Display RS485 For Electric Motorcycle Tricycle
Application:
Appliction for various electric motorcycles and tricycle.African, Southeast Asian, South American area!
