No.
|
Item
|
General Parameter
|
Remark |
|
1 |
Combination method |
8S2P |
|
|
2 |
Rated Capacity |
3.0 Ah |
Standard discharge after Standard charge(package) |
|
3 |
Nominal Voltage
|
25.6V |
Mean Operation Voltage |
|
5 |
Discharge cut-off voltage
|
20.0V |
|
|
6 |
Charging cut-off voltage |
29.2V |
|
|
7 |
Cell and assembly method
|
IFR18650EC-1.5AH |
8S2P |
|
8 |
Maximum Charge Current
|
3.0A |
|
|
9 |
Maximum Discharge Current
|
3.0A |
|
|
10 |
Operation Temperature Range
|
Charge: 0~45℃ |
60±25%R.H.
|
|
Discharge: -10~50℃ |
|||
|
11 |
Storage Temperature Range
|
Less than 1 year : 0~25℃
|
60±25%R.H. at the shipment state
|
|
Less than 3 months:-5~35℃ |
|||
|
8 |
Packing material
|
PVC shrink |
|
|
9 |
Weight |
400g |
|
|
10 |
Pack Dimension
|
High/:69mm |
max size |
|
Width/:40mm |
|||
|
Length/:150mm |

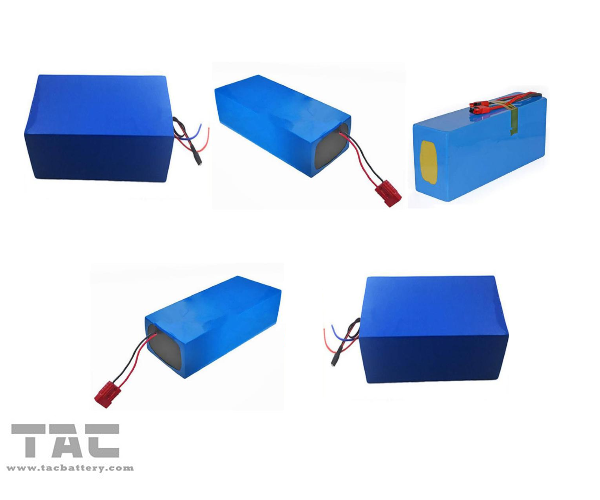

This lifepo4 battery pack can used for protable tracking system, and super long life,the battery can work over 5-10 years suitabel below item Operating Temperature: -20ºc +60ºc (discharge) 0º +60ºc (charge)

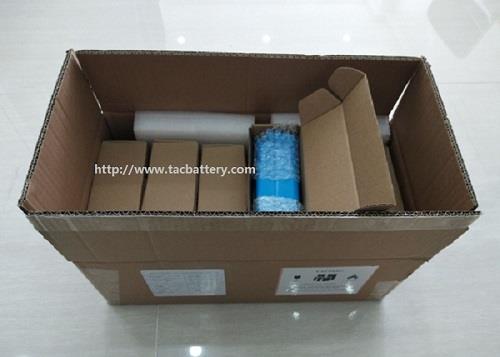

the battery put in one sponge bag , 3-4 bag in each box , and 8 -10 box in each carton
Lead Time
the battery can be ready within 15 days after you confirm the order and arrange the payment with the PI
Q1:Why choose Tac Battery?
1.Quick response to clients' enquiries within 24hrs via Email skype FB & Linkedin
2.Strong R&D capability, all kinds of latest products available cover lithium-ion polymer lifepo4 battery cell and pack including of the BMS
3.More than 10 years experience in producing battery products for various application.
4.promised the high quality and long-term cooperation to reach win-win relationship
Q2:Are you a Factory or trading company?
We are manufacturer , we have 4 factory which is located in guangzhou zhuhai shenzhen henan
Q3: When will the products be deliveried if the order has been placed?
We promise we do delivery our battery in 7 days for the single cell and it will take 28 days for the customised itmes .
Q4: What is your quality control process?
We are certified with ISO-140001, and strictly follow the ISO procedures.We do 100% testing for any of batteries before the order has been deliveried.
Q5: What Certificates do you have?
Our batteries have been tested by REACH UN38.3 UL BIS Standards for single cell
And we support to arrange specially certification with your require
