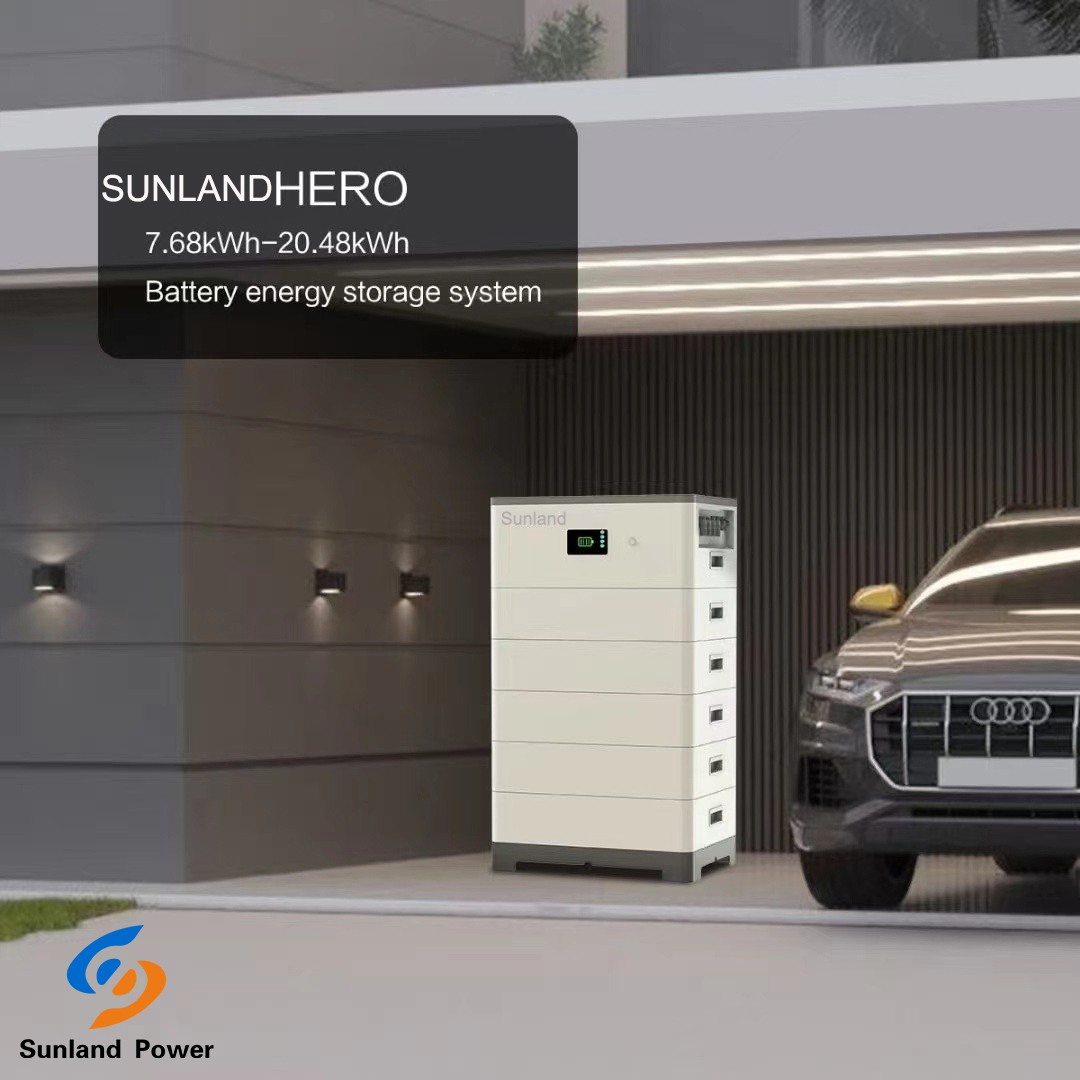

UPS Solar Kits 20KW Lifepo4 Battery Module 2.56kWh and Inverter Set For Home Energy Storage System
|
No./
|
Items/
|
Specifi cations/
|
| 1 | Total Capacity | 50Ah |
| 2 | Max. charge/discharge current(@25℃) | 50A |
| 4 | Peak charge/discharge current(@25℃ ,5S) | 75A |
| 5 |
*RoomTemperature Calendar Life(25°C±2℃) |
≧ 10 years(warranty) |
| 6 |
*RoomTemperature Cycle Life(25°C±2℃) |
3000 cycles/80%EOL |
| 7 | Operating ambient temperature | - 10℃~50℃ |
| 8 | Optimal operating temperature | 15℃~30℃ |
| 9 | RTE | ≥95% |
| 10 | Operating ambient humidity | 5%~95%RH |
| 11 | Discharge rate of Module | ≤3.5%/month/@25℃ |
| 12 | Module Series connection/ Module | 3S~8S |
| 013 | Parallel connection | 16 units in parallel/16 |
| 14 | Cooling/ | Natural cooling |
| 15 | Altitude | ≤2000m |
|
16 |
Communication port ( between parallel battery systems) | CAN |
| 17 |
Communication between EMS and battery system/ EMS |
CAN |
| 18 | Regulation compliance | / |
| 19 | EMC standard/EMC | / |
| 20 | UN Transportation Test Standard | / |
| 21 | Ingress Protection rate | IP55(in stacked up state) |
| 22 | Environment protection standard | RoHS ,REACH |
 Parameter/ |
 Specifications/ |
||||||
| Module |  |

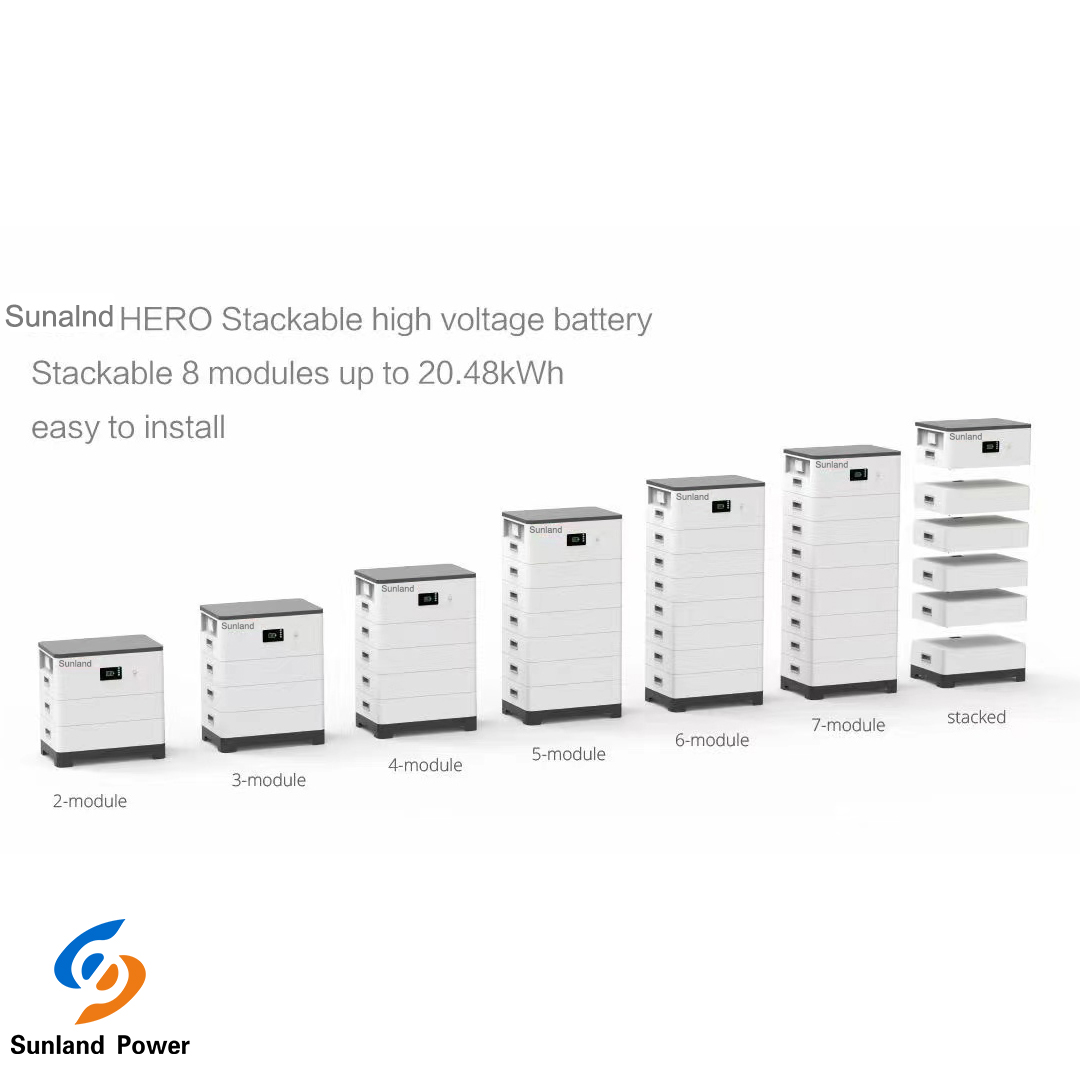

3S | 4S | 5S | 6S | 7S | 8S |
| Total capacity | 50Ah | ||||||
| Total energy kWh | 7.68 | 10.24 | 12.80 | 15.36 | 17.92 | 20.48 | |
|
Size (W*D*H) mm (without feet) (To be updated) |
550*380*699.5 |
550*380*831.0 |
550*380*962.5 |
550*380*1094.0 |
550*380*1225.5 |
550*380*1357.0 |
|
|
Weight kg ( To be updated) |
115.0 | 145.0 | 175.0 | 205.0 | 235.0 | 265.0 | |
| Nominal voltage V | 153.6 | 204.8 | 156.0 | 307.2 | 358.4 | 409.6 | |
| Output voltage range V |
134.4~ 172.8 |
179.2~ 230.4 |
224.0~ 288.0 |
268.8~ 345.6 |
313.6~ 403.2 |
358.4~ 460.8 |
|
UPS Solar Kits 20KW Lifepo4 Battery Module 2.56kWh Inverter Set For Home Energy Storage System
