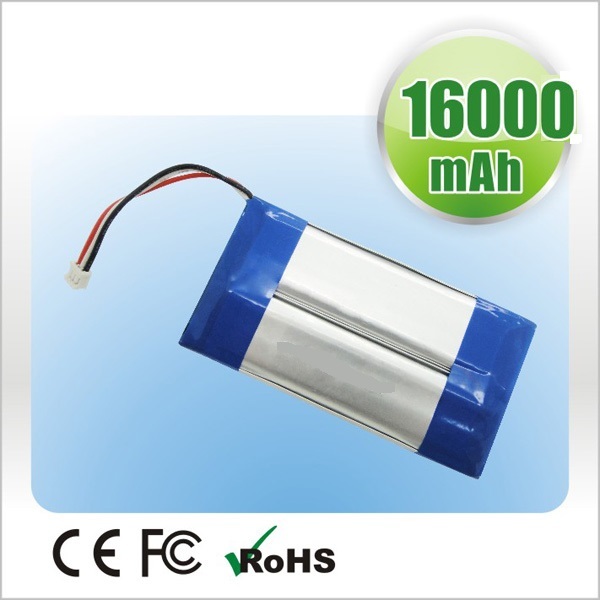

Model NO: 0797217 16000mah 3.7-4.2V
Discharge Rate: High Discharge Rate
Rechargeable: Yes
Battery Protection: PCB/PCM/BMS Including five performance
Similar Battery Capacity: 16000ah-25000mah
Battery Warranty: 12 months
Battery Material: Lithium polymer
Circle life : 500 times
Battery Charger: OEM
|
No. |
Item |
General Parameter |
Remark |
|
|
1 |
Rated Capacity |
Typical |
16000mAh |
Standard discharge（0.2C C5A) after Standard charge |
|
Minimum |
15000mAh |
|||
|
2 |
Nominal Voltage |
3.7V |
Mean Operation Voltage |
|
|
3 |
Voltage at end of Discharge |
3.0V |
Discharge Cut-off Voltage |
|
|
4 |
Charging Voltage |
4.2V |
|
|
|
5 |
Internal Impedance |
60m |
Internal resistance measured at AC 1KHZ after 50% charge The measure must be uses the new batteries that within one week after shipment and cycles less than 5 times
|
|
|
6 |
Standard charge |
Constant Voltage 4.2V 0.01 C5A cut-off
|
Charge time : Approx 4.0h
|
|
|
7 |
Standard discharge |
|
|
|
|
8 |
Fast charge
|
Constant Current 1C5A Constant Voltage 4.2V 0.01 C5A cut-off
|
Charge time : Approx 2.5h
|
|

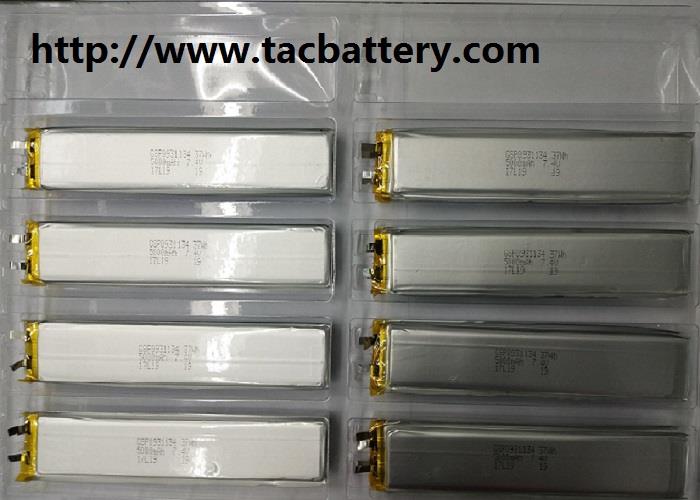

In order to meet require for internation overseas transportation rules,Tac seperated the battery one by one with specially plastical tray
| TYPE | CAPACITY | MIN CAPACITY | Resistance | Voltage | size for bulk cell | weight | ||
| 8050117 | 6000 | 6000 | ≤30 | 3.7 | 7.8 | 49.5 | 117.5 | |
| 886093 | 6000 | 5900 | ≤30 | 3.7 | 8.8 | 60.5 | 93.5 | |
| 5284121 | 6100 | 6000 | ≤30 | 3.7 | 5.2 | 84.5 | 121.5 | |
| 0797217 | 16000 | 16000 | ≤3 | 3.7 | 7.2 | 97.5 | 217.5 | |
| 38101156 | 6600 | 6600 | ≤30 | 3.7 | 3.6 | 101.0 | 156.5 | 128.5 |
| 09102165 | 10000 | 9500 | ≤6 | 3.2 | 9.0 | 102.0 | 165.0 | 245.0 |
| 34109125 | 6000 | 6000 | ≤30 | 3.7 | 3.4 | 109.5 | 125.5 | |
| 95135210 | 25000 | 24500 | ≤2 | 3.2 | 9.5 | 135.0 | 210.0 | 530.0 |
| 09185190 | 25000 | 24500 | ≤2 | 3.2 | 9.0 | 185.0 | 191.0 | 540.0 |
| 85200235 | 22000 | 22000 | ≤2 | 3.2 | 8.5 | 200.0 | 233.0 | 620.0 |
Cycle Life and Leakage-Proof Test Conditions
|
No.
|
Item
|
Criteria
|
Test Conditions
|
|
1 |
Cycle Life
(0.5 C5A) |
Higher than 80% of the Initial Capacities of the Cells
|
Carry out 300cycle Charging/Discharging in the below condition. Charge:Standard Charge, per 3.3.1 Discharge:0.5 C5A to 3.0 V Rest Time between charge/discharge:30min. Temperature:20±5℃
|
|
2 |
Leakage-Proof
|
No leakage (visual inspection)
|
After full charge with standard charge, store at 60±3℃, 60±10%RH for 1 month. |
Period of Warranty
The period of warranty is half a year from the date of shipment. TAC BATTERY guarantees to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.
