Parameter:
|
No. |
Item |
General Parameter |
Remark |
| 1 |
Rated Capacity |
200Ah |
Standard discharge(0.2 C5)after standard charge(0.2 C5) |
| 2 |
Minimal Rated |
198Ah | |
| 3 |
Nominal Voltage |
12.8V | |
| 4 |
Cycle Life |
Higher than 60% of the Initial Capacity of the Cells 60%) |
◆Charge: [email protected] to 14.6V, then CV till current to 0.05C |
| 5 |
Discharge cut-off voltage |
8.8V |
10.0V( recommended) |
| 6 |
Charging cut-off voltage |
14.6V |
14.6V (recommended) |
| 7 |
Cell and assembly method |
IFR32700-6AH | 4S34P |
| 8 |
Housing material |
Black plastic ABS case |

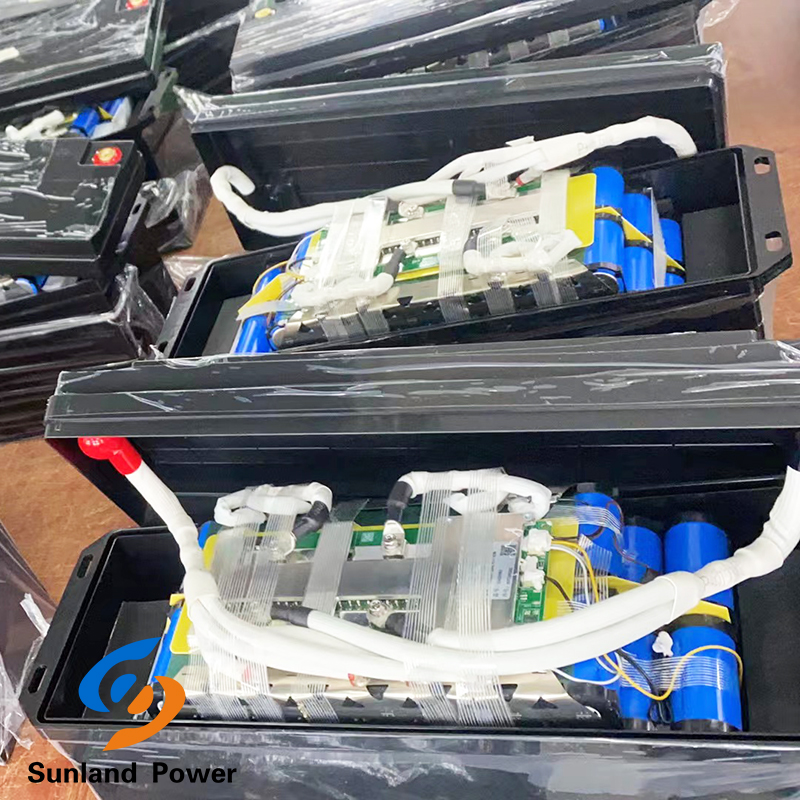

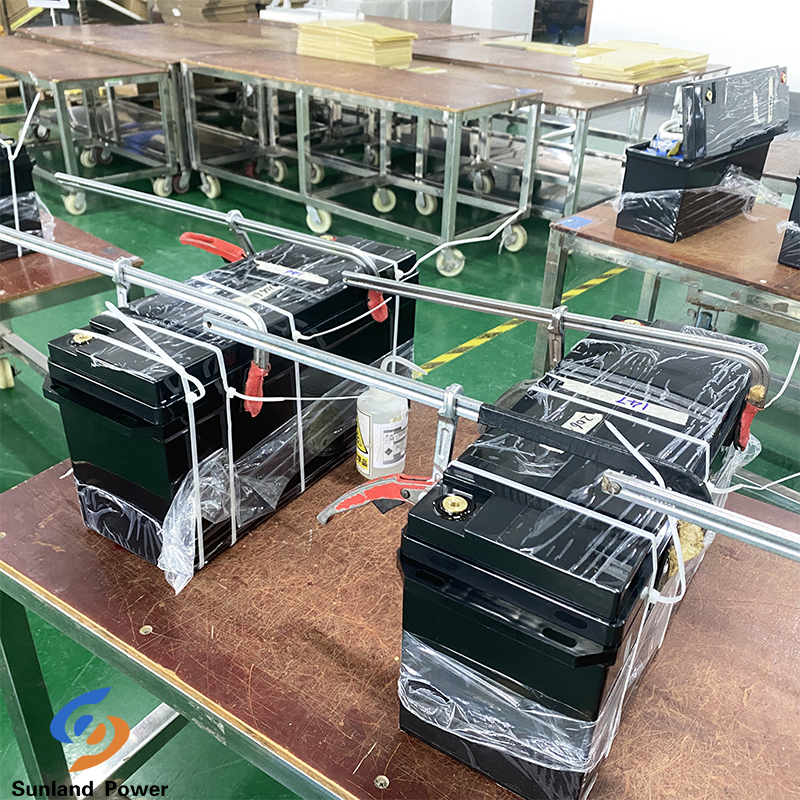

Picture:
BMS Parameter:
|
Item name |
type |
unit |
| Charging voltage | 14.4 | V |
| Overcharge protection voltage | 3.75±0.05V | V |
| Overcharge protection recovery voltage | 3.65±0.1V | V |
| Over discharge protection voltage | 2.2±0.1V | V |
| Over discharge protection recovery voltage | 2.6±0.1V | V |
| Discharge over current protection current | 200 | A |
| Overcharge detection delay time | 1 | s |
| Over discharge detection delay time | 1 | s |
| Short circuit protection delay time | ≤500 | μs |
| Recovery condition | Off load | |
| Self-discharge in working condition | ≤300 | μA |
| Conduction internal resistance | 55 | mΩ |
| Max continuoous charging current | 150 | A |
| Max continuoous discharging current | 150 | A |
| working temperature | -20℃ to 65℃ | ºC |
| Balance current | 30 to 50 | mA |
| Size | 232*125*20 | mm |
